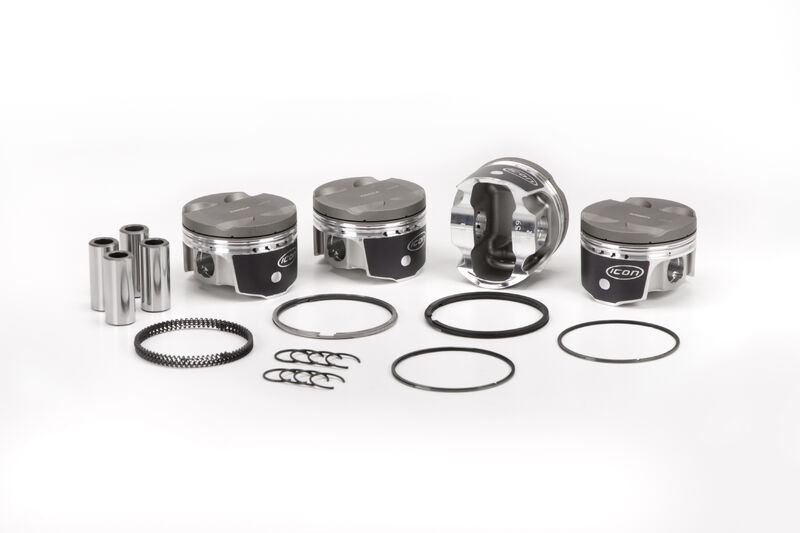

ICON Premium - Mitsubishi 138.5 Dish +5cc Kit with Rings (PART #UNI-IC542CAK.1.5MM)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Family Mitsubishi I4 2.0l 4G63T/DSM/EVO 4-9
Year Range 1993-2007
Eng. Disp. In. 121.9
Piston Material Forged 2618 Alloy
Bore Diameter IN 3.346
Bore Diameter MM 85.0
Stroke (in) 3.464
Stroke (mm) 88
Rod (in) 5.906
Rod (mm) 150.000
Compression Height IN 1.135
Compression Height MM 28
Ring Pack 1.0mm, 1.2mm, 2.8mm
Pin Diameter (in) .866
Pin Diameter (mm) 22.0
Pin Type Floating
Pin Configuration Offset
Pin Number .8660x2.250x.225C-SCR415H
Crown Type DISH
Crown (cc) +5cc
Intake Valve Depth/diameter .217/1.472
Exhaust Valve Depth/diameter .217/1.472
Top Land .320
Oe Deck Height 9.015
Oversized Yes
Oversize 1.5mm
Oversizes STD .50mm 1.0mm 1.5mm
