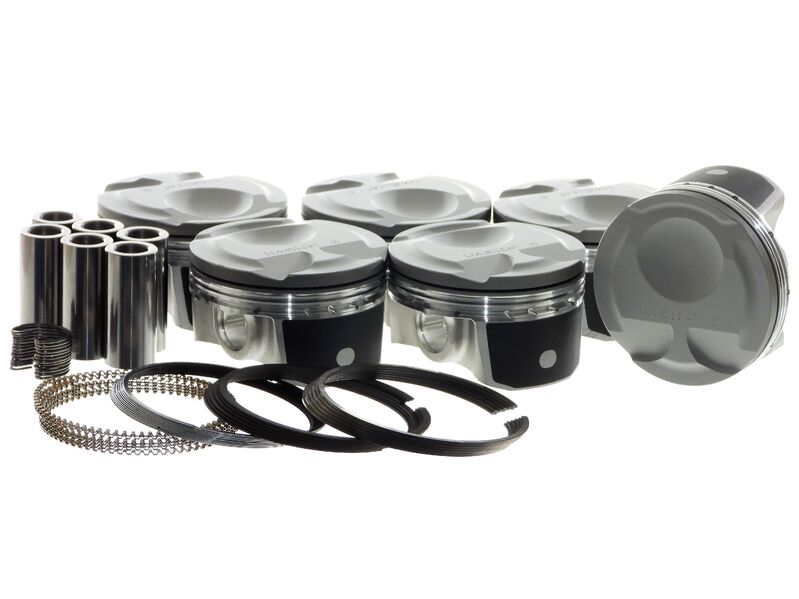

ICON LCAT - Ford 2.7L Ecoboost 2018-20 Kit with Rings (PART #UNI-IC435LCATK.STD)

ICON forgings are created at UEM's in-house facility, utilizing the latest innovations in piston forging technology. Each ICON piston is purpose built from the ground up for extreme high-performance street or racing applications. From the FHR series to the LCAT, ICON offers the most diverse and fully-featured Off the Shelf forged piston on the market today. No matter what your high-performance application calls for, there is an ICON piston for you.

Click here to view the Installation Guide

SPECIFICATIONS

Engine Manufacturer Ford
Engine Family Ford EcoBoost
Eng. Disp. In. 164
Eng. Disp Liters 2.7
Piston Material Forged 4032 Alloy
Bore Diameter IN 3.2677
Bore Diameter MM 83
Stroke (in) 3.267
Stroke (mm) 83
Rod (in) 5.75
Rod (mm) 146.05
Compression Height IN 1.19
Compression Height MM 30.22
Ring Pack 1.2mm, 1.2mm, 2.5mm
Pin Type Floating
Pin Configuration Centered
Crown (cc) +0.80cc
Compression Ratio 10.0:1
Top Land 0.225
Oversized No
Oversize STD
Oversizes STD .5mm
Includes Ring Set 3268LP.5MM
