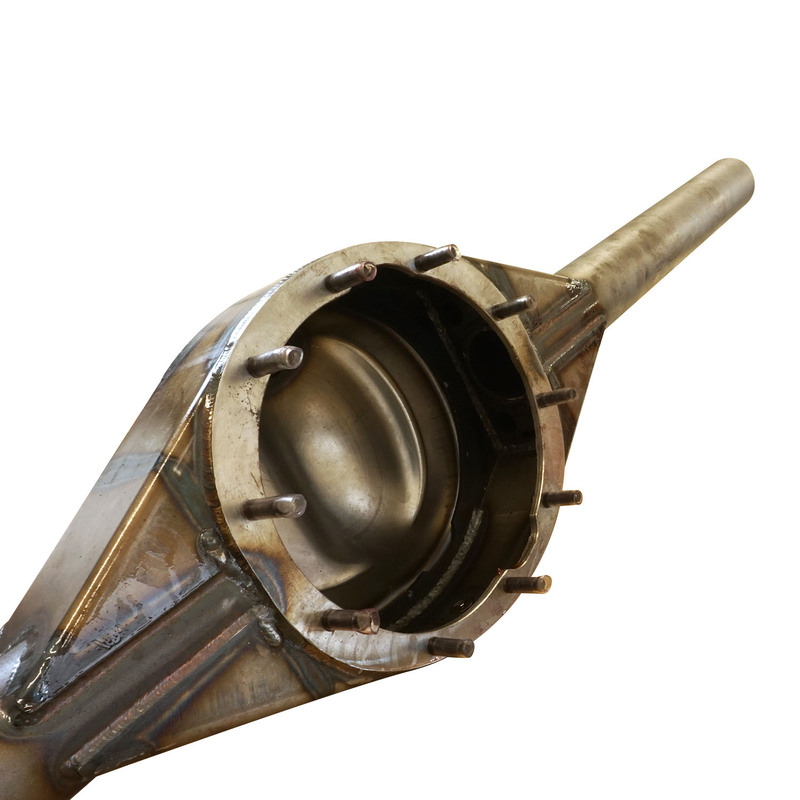

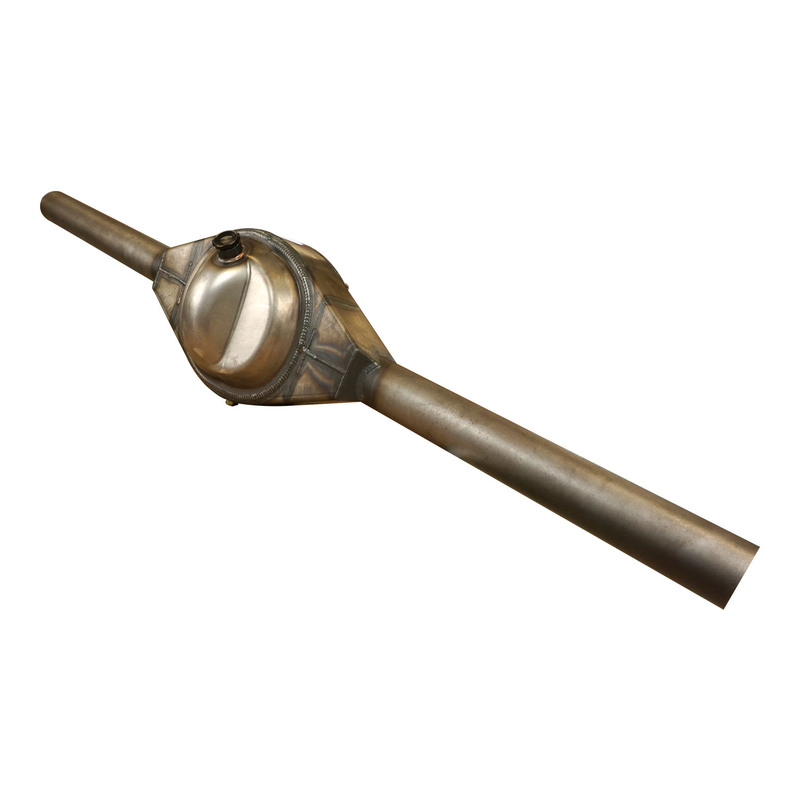

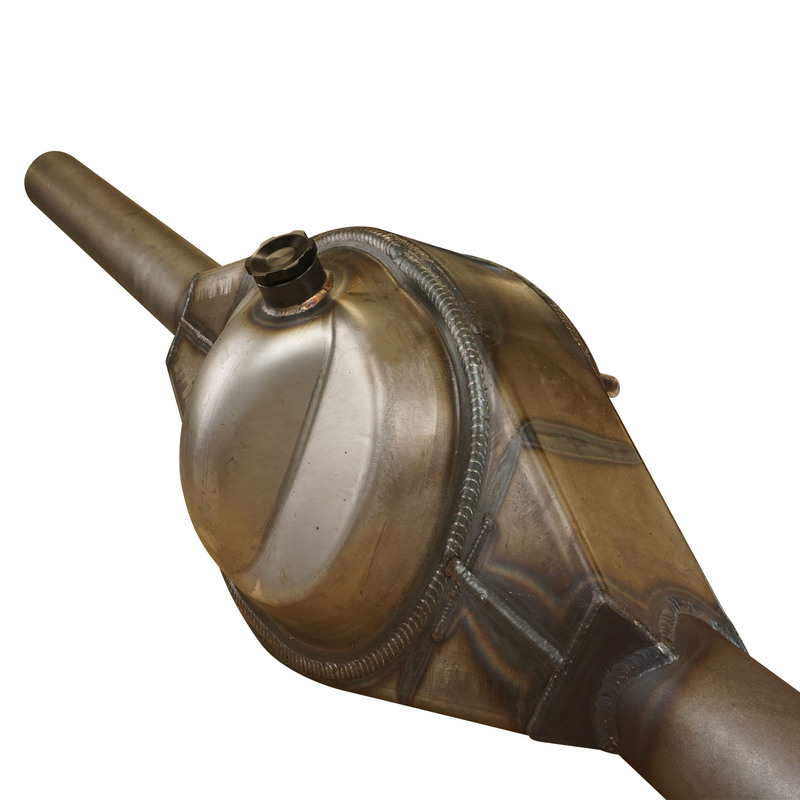

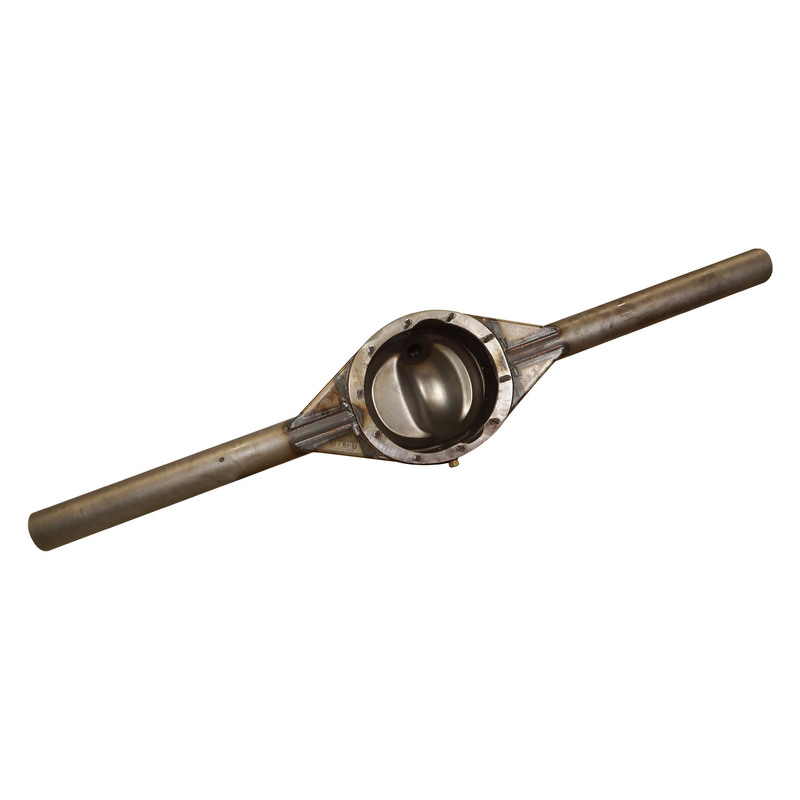

RTS offers Ford 9” direct fit fabricated rear axle housings for a variety of configurations, which are designed and manufactured to be more structurally rigid than OEM housings. Welded using high tensile steel wire, they are fixture-welded to ensure proper alignment and slotted for full tube engagement. They are also reinforced in critical areas internally to reduce centre section and axle tube flex. Whether your car is headed for the street, track or the drag strip, you can customise your car’s rear end with an RTS rear axle housing to exceed all expectations. You can also purchase the housing separate without end tubes.

Features :

  • Fabricated robot welded mild steel construction
  • Heavy duty face plate
  • 3" Mild Steel tubes (.210" wall thickness)
  • Internal gussets providing extra support
  • Clearance for 9″ and 9 1/2″ gear sets
  • Center section studs included
  • Billet oil cap
