Suits: NEXUS R5

Includes: 5 x Main ECU connectors4 x CAN ConnectorsFully populated with TXL wire

Notes: The following cables within this harness are 5M in length* High Current Outputs 2 to 12* Extra High Current Outputs 1 to 4


OVERVIEW


HARNESS OVERVIEW

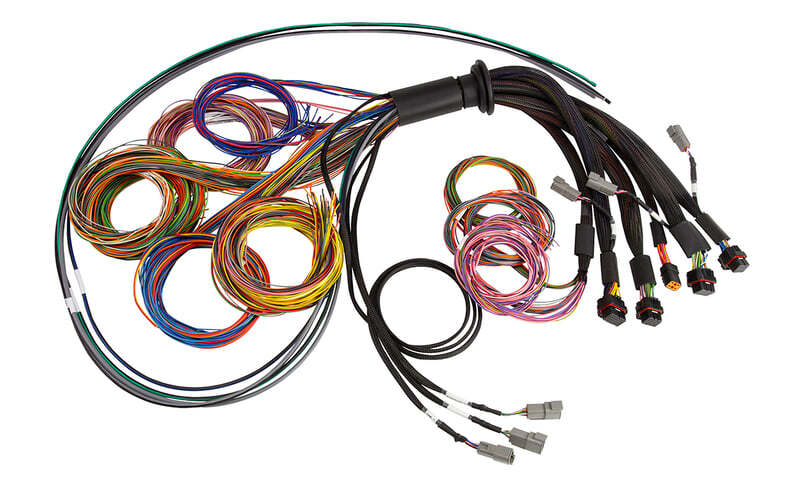

Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go!
  • Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
  • The wiring diagram is accompanied by the full VCU manual and Software located on the USB key provided with the VCU, or downloadable from the Haltech Website.
