Suits: Honda S2000 AP1 (00-04), AP2 (05) non-DBW

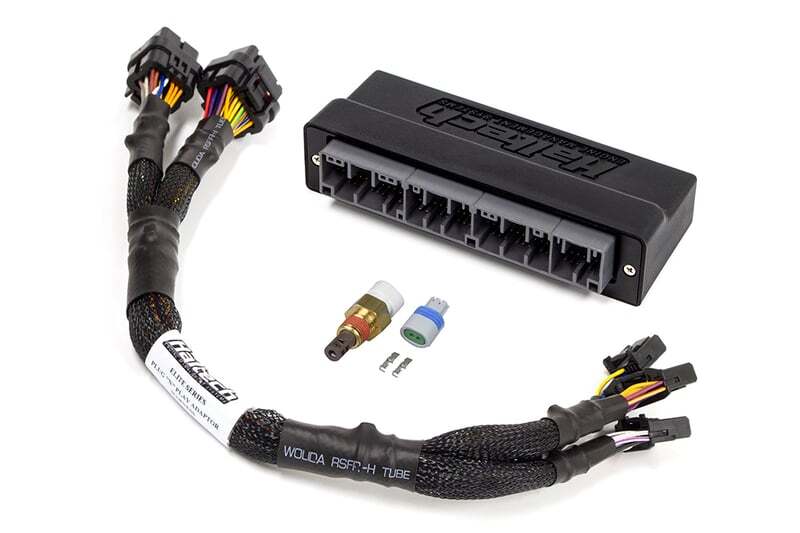

Includes: Plug'n'Play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Non Drive-By-Wire (DBW) application only.


OVERVIEW

ADAPTOR OVERVIEW
This adaptor plugs directly into your Haltech Elite ECU and has a set of factory connectors on the other side which plug straight into the factory harness. A quick and easy plug'n'play upgrade solution.
  • A simple Haltech Plug'n'Play product that allows plugs directly into your car's factory harness.
  • The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.
  • When purchased as a kit with a Haltech ECU, this product is accompanied by the full ECU manual and Software located on the CD or USB key.

FEATURES

SUPPORTED OEM FUNCTIONALITY:
  • Idle Control (BAC)
  • Thermofan
  • Tachometer
  • A/C Request and Control
  • Engine Control Relay
  • Fuel Pump
  • Electrical Power Steering Load Detect
  • Knock Sensor 1
  • Coolant Temperature Sensor
  • Air Temperature Sensor
  • O2 Sensor Front & Rear
  • Check Engine Light
  • Throttle Position Sensor
  • Vehicle Speed Sensor
  • VTEC Oil Pressure Switch
  • VTEC Solenoid
  • Air Pump Relay (E1500 Only)
  • Factory Map Sensor
  • Alternator Control
  • Brake Pedal Switch
  • Electrical Load Detect
  • S2000 Coolant Gauge
