DASH OVERVIEW

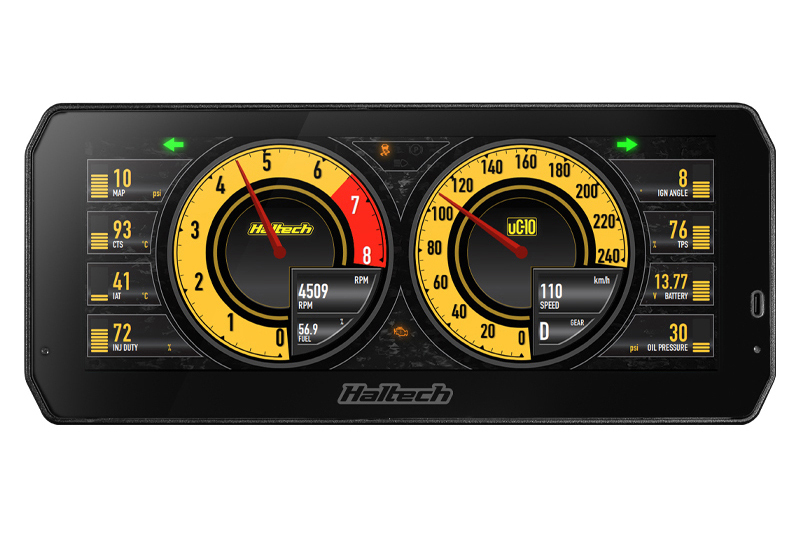

With a crisp, clear and full-color display, the all-new Haltech uC-10 Display Dash is now available.

The uC-10 is compatible with Haltech CAN, OBD2, and selected aftermarket ECU brands. It can also be wired in as a complete stand-alone unit. This versatility ensures that it can seamlessly integrate into a wide range of vehicles and setups.

The uC-10 offers plenty of scope for sensors and other inputs in a stand-alone configuration or for use as an I/O expander in a Haltech environment.

  • Full-colour, optically-bonded TFT screen
  • 70° minimum viewing angle (vertical and horizontal)
  • 1280 x 480 resolution, 600+ lumens
  • IP64 (Dust-tight and protected against water splashes)
  • 6-digit odometer
  • 512MB of on-board looped data logging
  • NSP compatible
  • 10 x user configurable AVIP's
  • 4 x user configurable DPO's
  • 4 x user configurable SPI's
  • 1 x dedicated Tacho Input
  • 1 x dedicated alternator excite
  • 2 x Ambient light sensors

All current Haltech ECUs via CAN. Also Plug'n'Play compatible with the following aftermarket ECU brands: Hondata, Link G4, MaxxECU, Microtech, MoTeC M1 series, MoTeC hundred series- (M400,600,800 gold box ECUs), Syvecs.

Includes: 1 x Haltech uC-10 Digital Dash, 1 x 34P connector - same as HT-131001, 1 x Haltech DTM4 to DTM4 CAN cable 3.0m (118in), 1 x USB-C cable, 3 x M5 x 8mm mounting screws, 2 x Momentary switches, pre-terminated 800mm 22AWG Cable, 1 x Glass Mount Wi-Fi antenna (Wi-Fi functionality will be made available with future firmware update), 1 x Haltech fabric keytag, Quick Start Guide, Haltech stickers.
