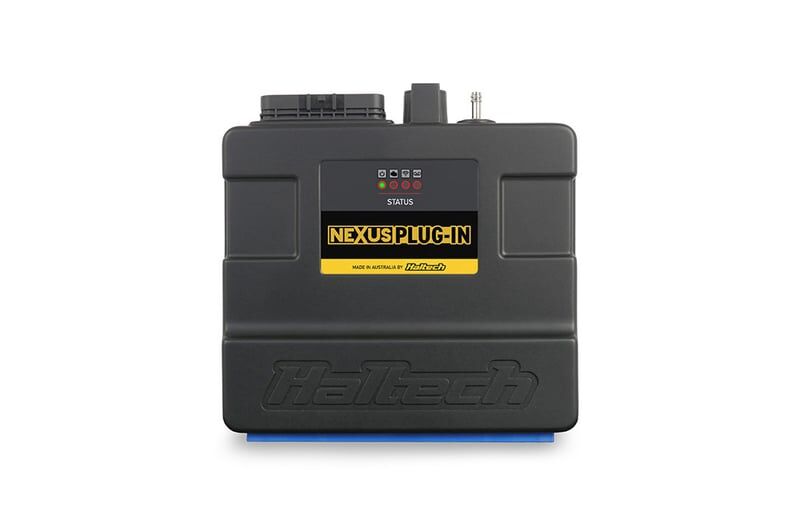

Nexus Plug-in ECU - Nissan Skyline R32/R33/R34 GT-R + LSU4.9 Wideband Hardware Pack (PART #HT-231802)

Suits: Plug 'n' Play replacement of the factory ECU for Nissan Skyline R32 GTS-T, R32 GT-R, R33 GTS-T, R33 GT-R, R34 GT-R

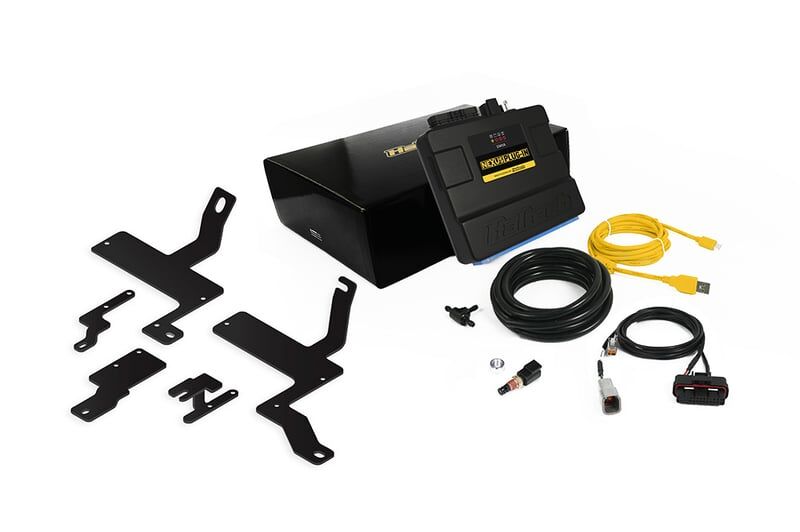

Includes: Nexus Plug-in ECU, Air temperature + Wideband expansion harness 2.5m (8') and spare pins, Air temperature sensor (1/8 NPT), Mounting hardware, vacuum hose, T-piece, USB cable, LSU 4.9 Sensor, harness and bung, Quick Start Guide.

Notes: Supports Manual Transmissions Only

The Haltech Nexus Skyline Plug-in, as the name suggests, plugs directly into the Nissan harness, and nestles neatly into factory location .

It seamlessly supports vital OEM functions like the R34 GT-R MFD Injector Duty Cycle display, GT-R ATTESA TPS output.

Unlock enhanced capabilities with "OEM Plus" functionality via the auxiliary connector, enabling features such as O2 Control, Flex Fuel, Oil Pressure monitoring, Fuel Pressure sensing, and Drive by Wire Throttle.

And for serious drivers, the Nexus ECU unleashes potent Race Functionality, including CO2 Boost Control, Race Timer, Advanced Torque Management, Launch Control, Nitrous Control, and 128MB of onboard data logging.

Setting up your Skyline has never been easier, thanks to the intuitive setup wizard in NSP software or the Haltech Connect App on your smartphone. Plus, Wi-Fi capability ensures effortless diagnostics and tuning on the go.

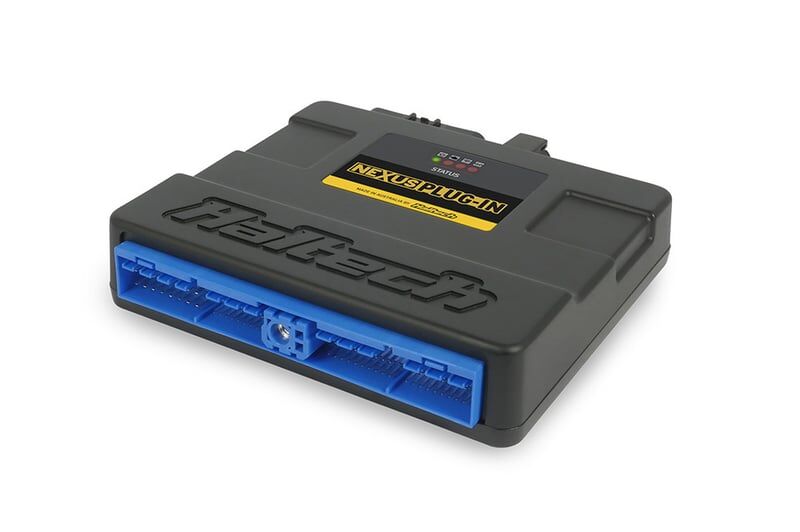

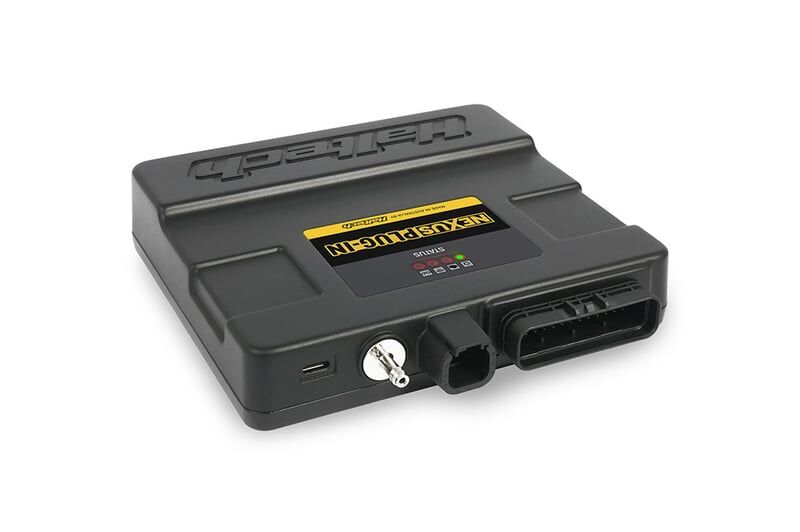

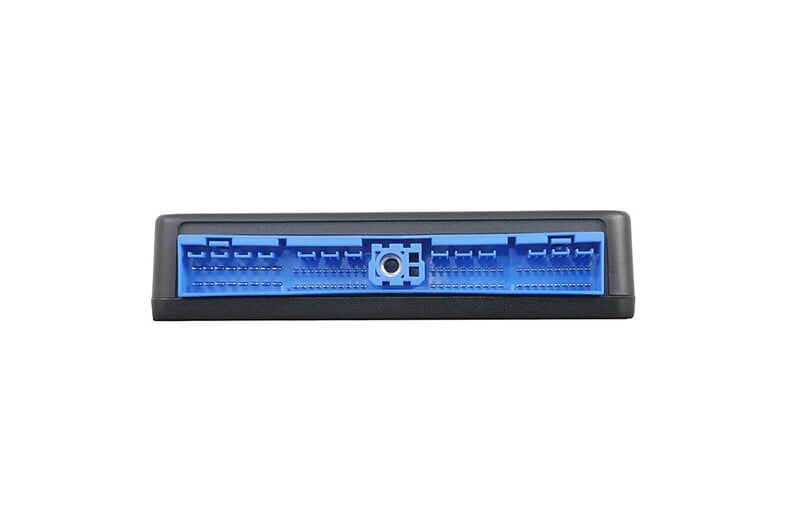

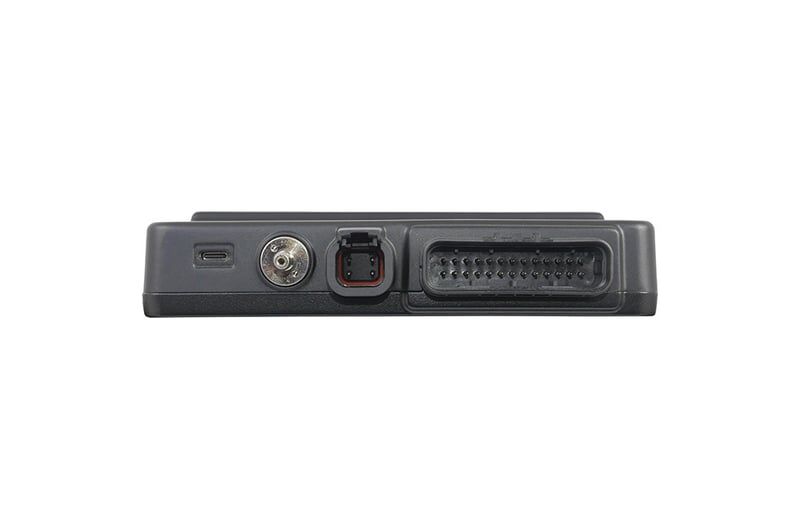

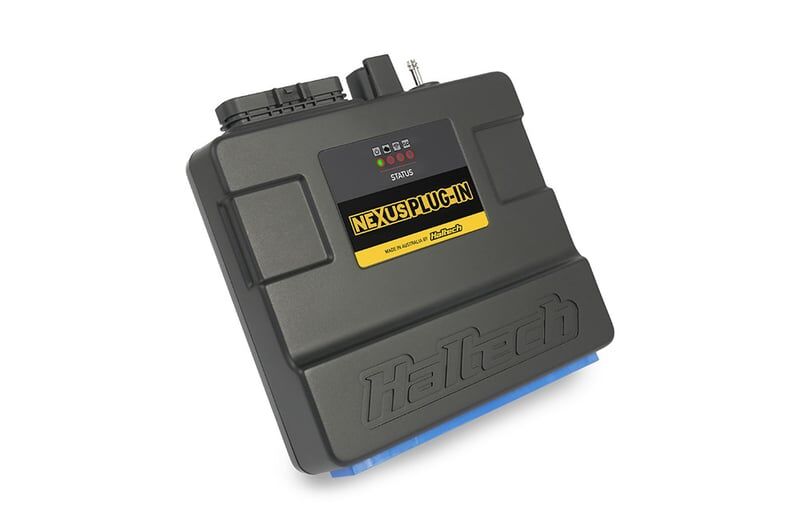

• Nexus Plug-in Nissan 76 pin 6 cylinder ECU

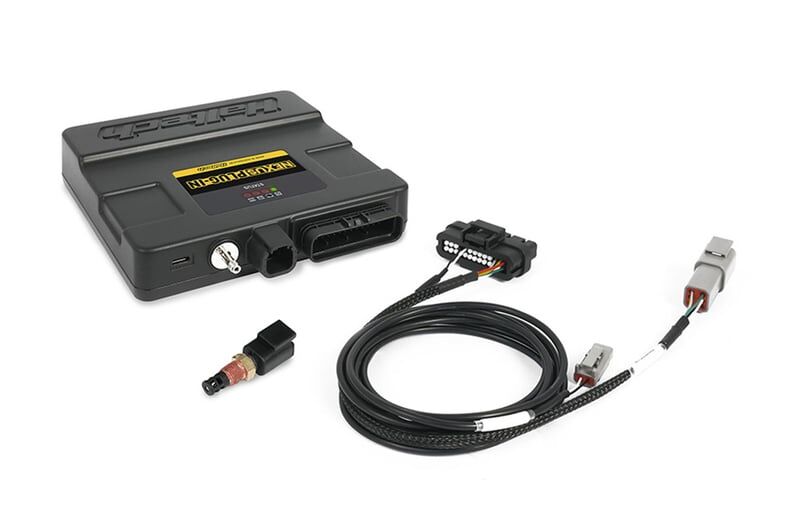

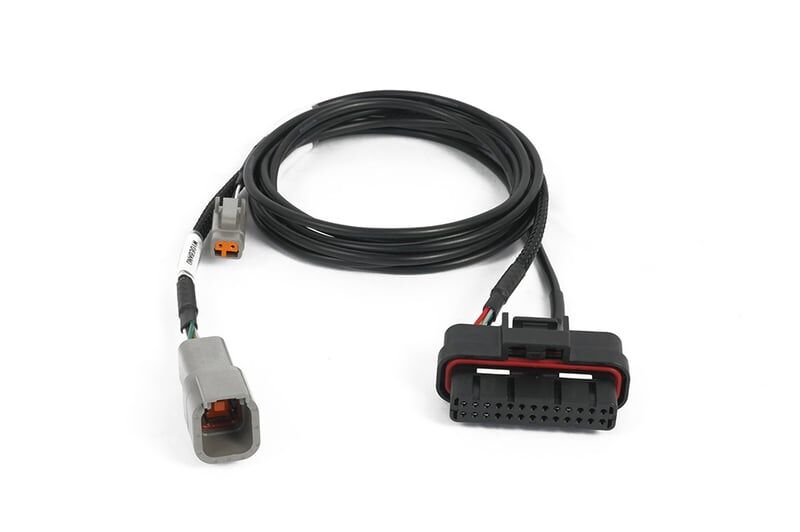

• Air temperature + Wideband expansion harness 2.5m (8')
• Air temperature sensor (1/8' NPT)
• Aluminium bung for air temperature sensor
• Mounting brackets and hardware to suit R32/R33/R34GT-R OEM mounting locations. (Total of 5; 2 x bracket per application)
• 3mm Vacuum hose 2.5m (8')
• 3mm Aluminium Vacuum T piece
• Haltech USB-C cable
• Quick start guide

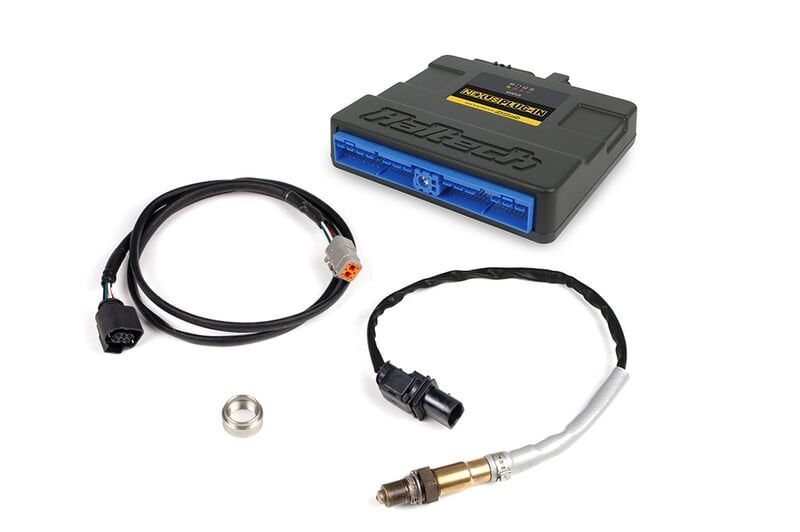

• Includes sensor, weld in bung and 1.2M / 47" harness plug and play with Nexus Series harnesses

Features:

• Drive By Wire Throttle Support
• Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
• Wi-Fi
• 4 channel onboard oscilloscope
• Data logging 128MB
• Flex Fuel
• Closed Loop O2 Control
• Dual Knock Control
• Variable Cam Control
• Long term learning

• 4 X Digital Pulsed Outputs
• 4 X Synchronised Pulsed Inputs
• 4 X Analogue Voltage Inputs
• 2 X Half Bridge Outputs
• 1 X Onboard Wideband
• 2 X Sensor Ground
• 2 x 12V Output
• 2 x 5V Output

• Output for ATTESA (GTR)
• Variable speed fuel pump
• Injector duty cycle output (R34 GTR)
• Boost Control
• A/C Output
• Idle Control
• Thermofan
• VCT Switched (N-VCT)
• Check Engine Light
• Fuel Pump Control Module
• Narrowband Sensors
• Vehicle Speed
• Air temperature Sensor (GT-R Only)
