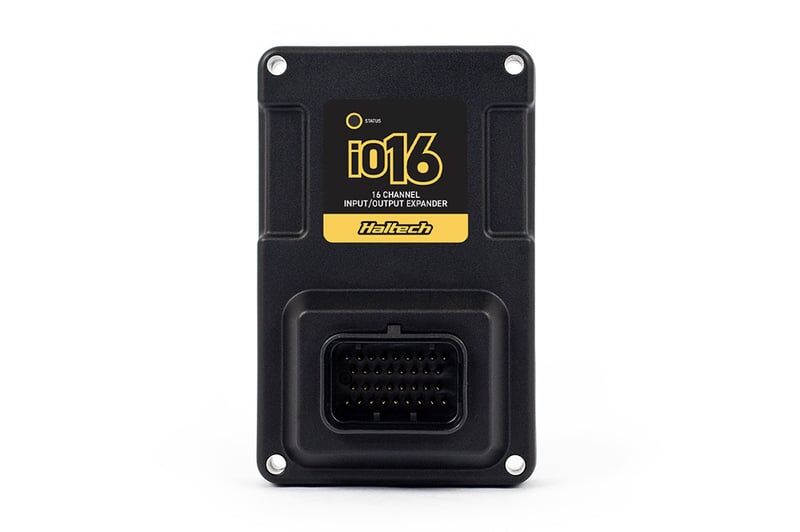

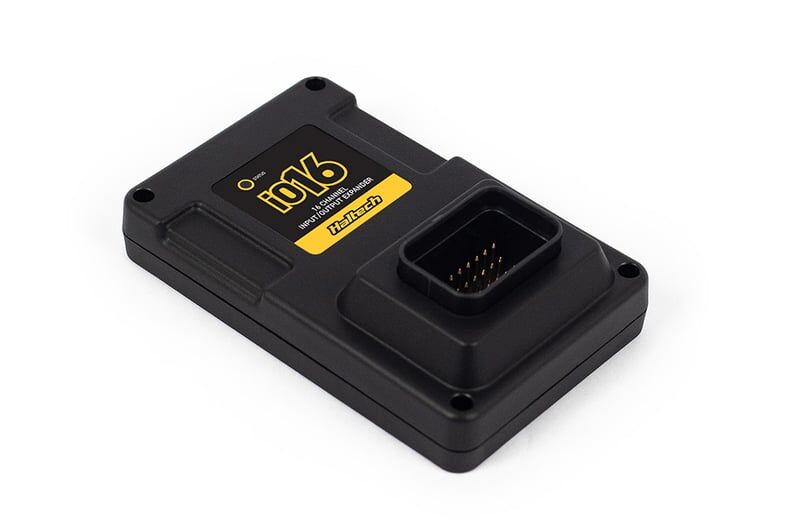

Nexus IO16 Input/Output Expander - 16 Channel (PART #HT-196000)

Suits: Nexus ECU's/VCU's/Dashes Elite ECU's

Includes: IO16 Expander, Mounting Hardware, and Quick Start Guide

Notes: Not Compatible with Platinum Series ECU's

The Nexus IO16 is a Haltech CAN device that expands the functionality of a Haltech Nexus or Elite ECU by adding 16 user-configurable input and output channels, accessible through the Haltech CAN system.

Features:

INPUTS

6 x Analogue Voltage Inputs (AVI)

  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V

4 x Synchronised Pulsed Inputs (SPI)

  • Reluctor/Digital
  • 0-5V readable range
  • Selectable 1k pull-up resistor to 5V
OUTPUTS

6 x Half Bridge Outputs (HBO)

  • 8A current (sink/source)
  • Capable of 0-100% duty cycle
  • 2.2khz switching speed
  • NOT suitable for DBW throttle application
WARNING - When using HBOs, ensure the Nexus IO16 is powered using the constant power pins and power ground pins.
OTHERS
  • 3 x 5V output (sensor power)
  • 4 x Sensor ground

Note: Any 5V and sensor ground pins can be paired when wiring sensors.
