Haltech Waterproof Mini Fuse and Relay Box (PART #HT-030103)

This Haltech-branded 28-way mini fuse and relay box provides a compact, dust- and waterproof enclosure for custom electrical distribution.

Its grid layout allows the included fuses and relays to be arranged to suit the requirements of the installation.

Key features include:

  • Compact 28-way fuse and relay enclosure
  • Dust- and waterproof construction
  • Configurable grid layout
  • Includes terminals, seals, sealing plugs, relays and mini fuses

SPECIFICATIONS

Capacity 28-way mini fuse and relay box
Enclosure Dust- and waterproof
Layout Configurable grid
Terminal Series Metri-Pack 280 series
Supported Wire Size 18AWG (0.85mm²) to 16AWG (1.25mm²)
Included Relay Rating 12V, 35A

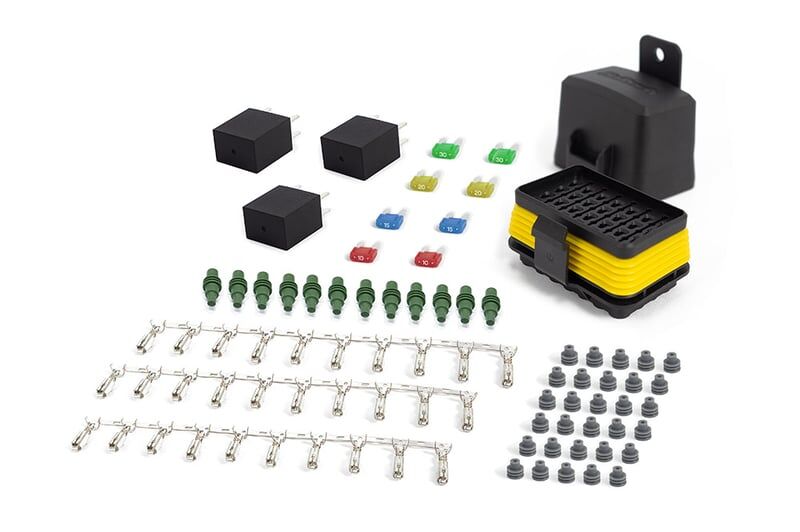

COMPONENTS

Description Units
Mini fuse relay box assembly, including lid, base and base seal 1
Metri-Pack 280 series terminals 30
Wire seals 30
Sealing plugs 12
4-pin micro relay, 12V 35A (HT-030205) 3
Mini fuse, 10A 2
Mini fuse, 15A 2
Mini fuse, 20A 2
Mini fuse, 30A 2
