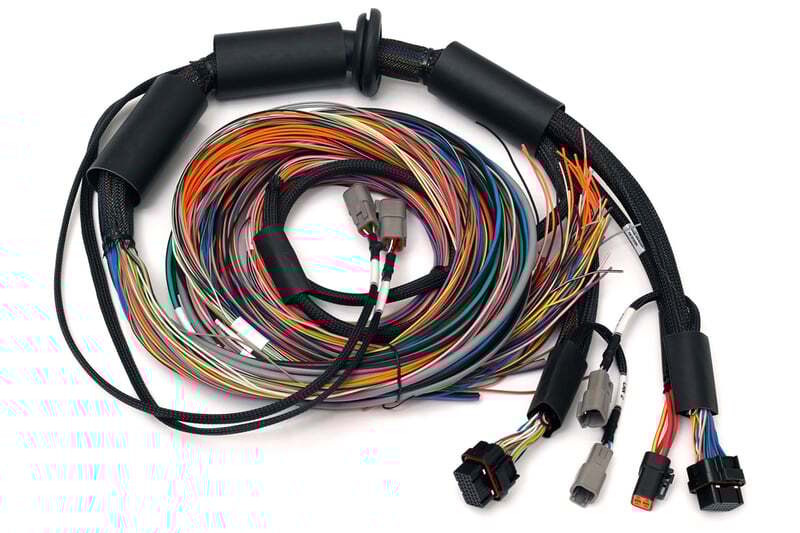

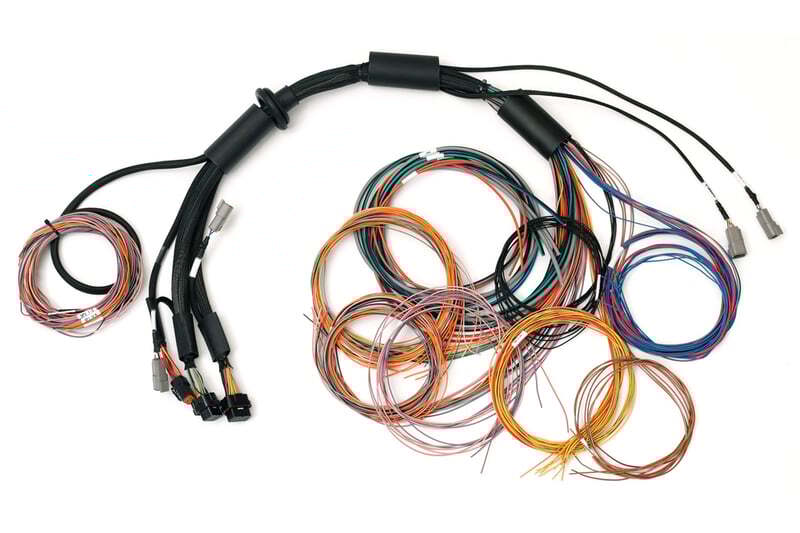

Suits: Nexus R3

Includes: 3 x Main ECU connectors3 x CAN Connectors1 x Wideband Connector1 x Firewall GrommetFully populated with TXL wire


OVERVIEW

HARNESS OVERVIEW
Ideal for dedicated race cars, engine swaps and custom wiring jobs. The Universal Wire-in Harness has a set of VCU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are colour coded and clearly labelled. Connect your Haltech VCU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map and you're ready to go!
  • Colour coded and labelled wires that match the detailed wiring diagram for a confusion free construction process.
  • The wiring diagram is accompanied by the full VCU manual and Software located on the USB key provided with the VCU, or downloadable from the Haltech Website.
