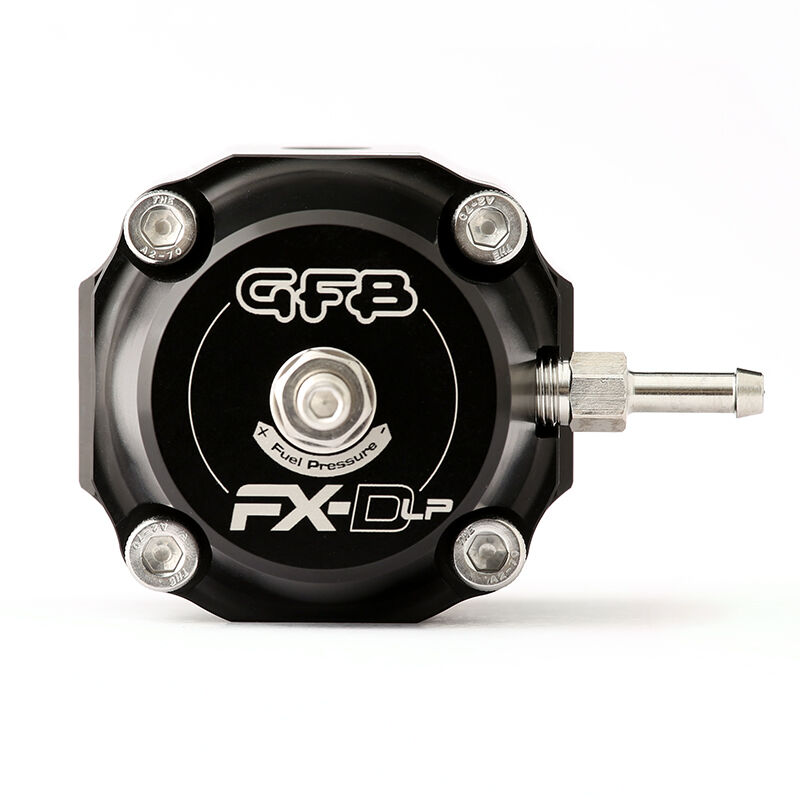

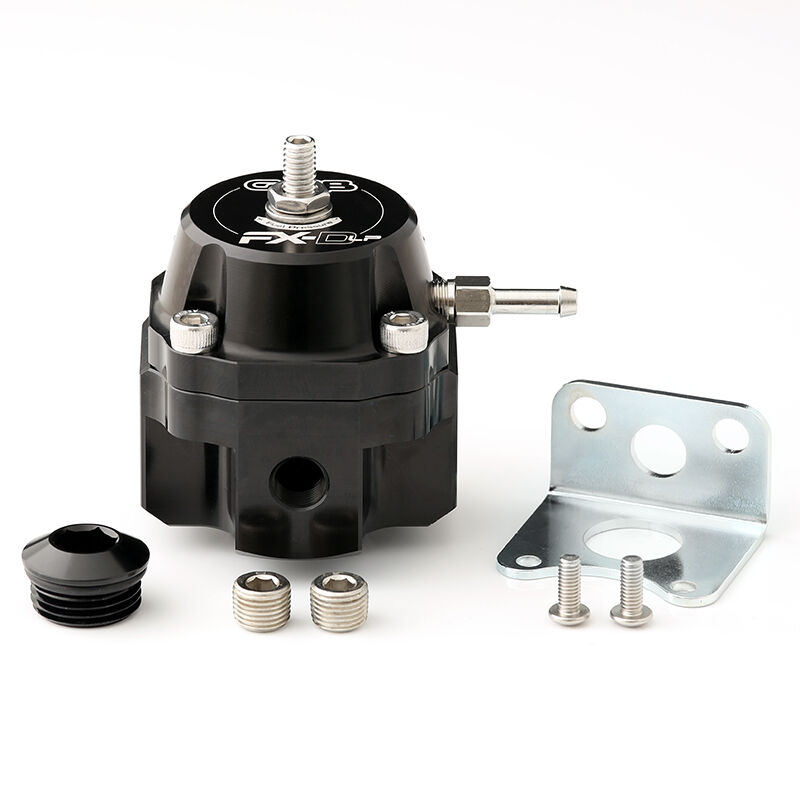

The GFB FX-D is a low pressure bypass type regulator intended for use on carburetors that are fed by an EFI type pump.

FX-D LOW PRESSURE FUEL REGULATOR FEATURES:

  • 2x -8AN inlet port, 2x 1/8” NPT pressure gauge/sensor ports, and 1x -8AN return port
  • Adjustable from 2-10psi
  • Flows 1900 LPH @7psi
  • Double layer/double reinforced diaphragms with a burst strength exceeding 500psi
  • Teflon co-polymer seat with spherical stainless valve to retain fuel pressure longer after shut down
  • Pressure reference port for blow-through boosted applications
  • Completely serviceable
