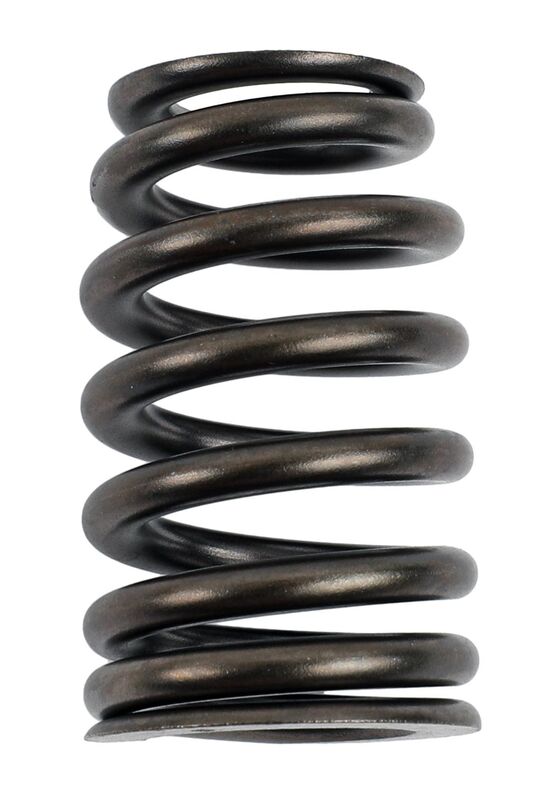

GM Performance Valve Spring, LS6 Style,.550 Max lift, Single Beehive, 1.290 in. o.d., 375 lbs./in. Spring Rate, 1.800 in. Installed Height, Each (PART #GMP-12713265)

GM Performance offers these valve springs for a variety of applications, and because they come from GM Performance, you can be assured that you're getting the right valve springs for your needs.

SPECIFICATIONS

Brand Chevrolet Performance
Manufacturer's Part Number 12713265
Part Type Valve Springs
Product Line Chevrolet Performance Valve Springs
UPC 00193468676334
Valve Spring Style Beehive
Number of Springs Per Valve Single
Maximum Valve Lift (in.) 0.550 in.
Retainers Included No
Outside Diameter of Outer Spring (in.) 1.290 in.
Coil Bind Height (in.) 1.200 in.
Damper Spring Included No
Spring Rate (lbs./in.) 375 lbs./in.
Locks Included No
Valve Stem Seals Included No
Valve Springs Coated No
Remanufactured No
Quantity Sold individually.
Notes GM production 2004-04 LS6 Corvette Z06 valve spring. Has a max lift of 0.550 in.
