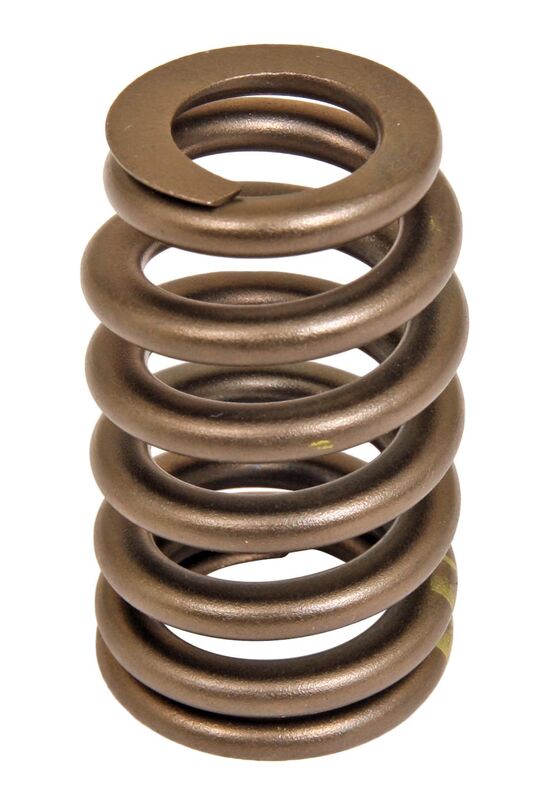

GM Performance Valve Spring, L76/L92 Style,.520 Max lift, Single Beehive, 1.290 in. o.d., 1.230 in. Coil Bind, 1.800 in. Installed Height, Each (PART #GMP-12706568)

GM Performance offers these valve springs for a variety of applications, and because they come from GM Performance, you can be assured that you're getting the right valve springs for your needs.

SPECIFICATIONS

Brand Chevrolet Performance
Manufacturer's Part Number 12706568
Part Type Valve Springs
Product Line Chevrolet Performance Valve Springs
Valve Spring Style Beehive
Number of Springs Per Valve Single
Maximum Valve Lift (in.) 0.520 in.
Retainers Included No
Outside Diameter of Outer Spring (in.) 1.260 in.
Coil Bind Height (in.) 1.230 in.
Damper Spring Included No
Locks Included No
Valve Stem Seals Included No
Valve Springs Coated No
Remanufactured No
Quantity Sold individually.
Notes Used on L76 and L92 engines. Max lift is .520 in.
