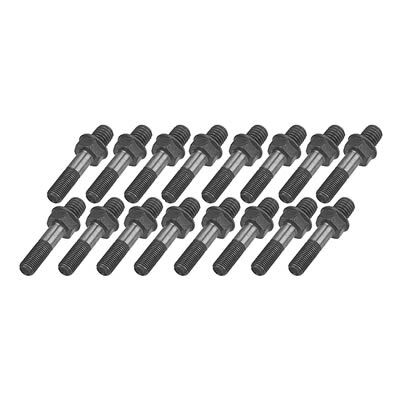

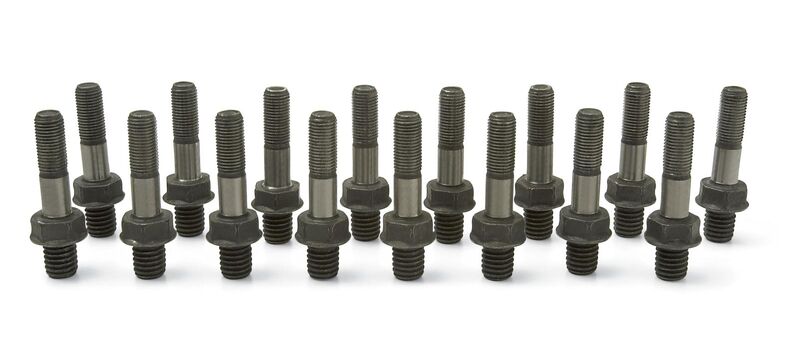

GM Performance Rocker Arm Studs, 3/8 Top, 7/16 Bottom, LateModel LT1/LT4 Style, NonGuidePl. (PART #GMP-12371058)

Improve valvetrain stability with these GM Performance rocker arm studs. These studs are available in several sizes and for a variety of engine applications.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12371058
Part Type Rocker Arm Studs
Product Line GM Performance Rocker Arm Studs
Base Thread Size 7/16 in.-14
Rocker Arm Nut Thread Size 3/8 in.-24
Rocker Arm Stud Material Alloy steel
Guideplate Locator Shank No
Rocker Arm Nut Thread Length (in.) 0.820 in.
Effective Stud Length (in.) 1.331 in.
Base Thread Length (in.) 0.500
Quantity Sold as a set of 16.
Notes Will not work with guideplates.
