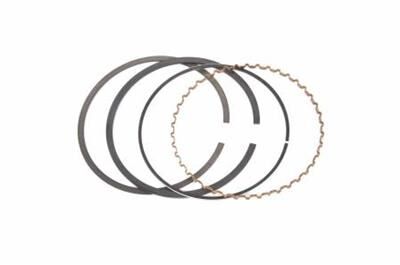

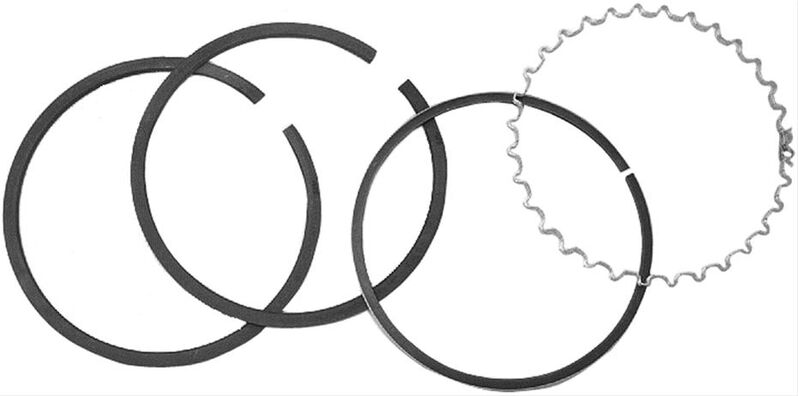

GM Performance Piston Rings, Moly, 4.500 in. Bore, 5/64 in., 1/16 in., 3/16 in. Thickness, V8, Single Piston Set (PART #GMP-12524294)

Piston rings operate in a very explosive environment, so they have to be extremely tough. GM Performance piston rings are premium quality and factory-tested to withstand the rigors of high-performance street and competition engines. Available in multiple designs, ring materials, and coatings, they are matched to specific engines and applications to exceed the ever increasing demands of today's most advanced vehicles.

Features and benefits of GM Performance piston rings include:

  • Made with the highest quality materials
  • Modern technology for uncompromising reliability
  • Proven to deliver unmatched performance and strength
  • Provide dependable operation for years to come

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12524294
Part Type Piston Rings
Product Line GM Performance Piston Rings
Bore (in.) 4.500 in.
Bore (mm) 114.300mm
File Fit No
Gapless No
Gas Ported No
Top Ring Included Yes
Top Ring Thickness 5/64 in.
Top Ring Material Iron
Top Ring Facing Material Moly
Second Ring Included Yes
Second Ring Thickness 1/16 in.
Second Ring Material Iron
Second Ring Facing Material Cast iron
Oil Ring Included Yes
Oil Ring Thickness 3/16 in.
Oil Ring Tension Standard
Oil Ring Material Stainless steel
Quantity Sold as 1 set.
Notes Single piston set.
