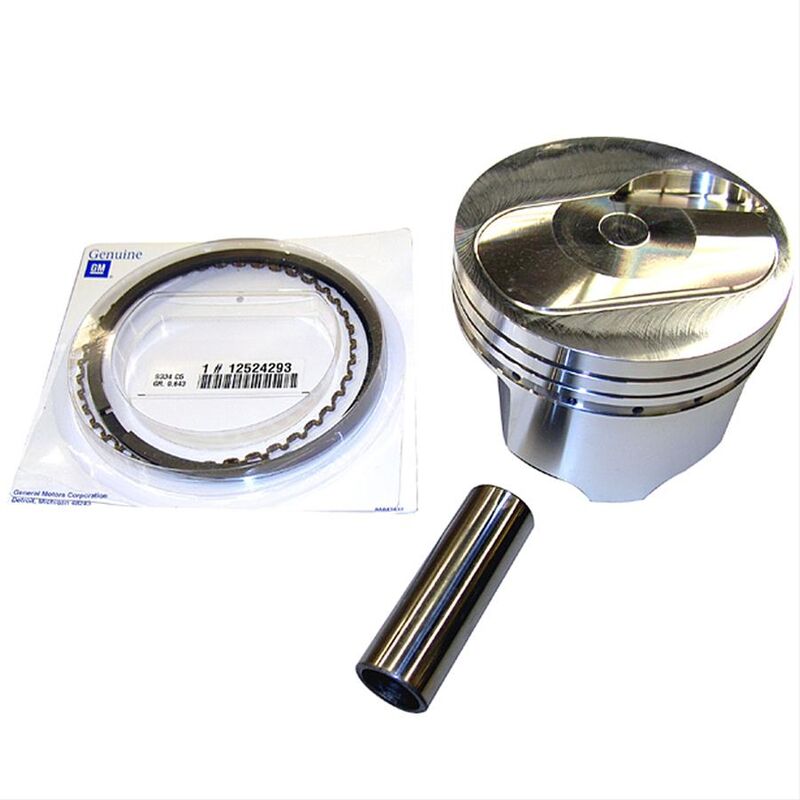

GM Performance Piston, Forged, Flat, 4.466 in. Bore, Chevy, Each (PART #GMP-12533507)

These GM Performance pistons are perfect for the serious engine builder. They are forged for strength and reliability to take the punishment that's dished out on the street and in competition. They're available for a wide variety of applications.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12533507
Part Type Pistons
Product Line GM Performance Forged Pistons
Piston Rings Included No
Bore (in.) 4.466 in.
Bore (mm) 113.436mm
Stroke 4.000 in.
Engine Stroke Type Stock
Rod Length 6.135 in.
Piston Style Flat top, with single valve relief
Piston Material Forged aluminum
Wrist Pin Style Press-fit
Wrist Pin Retainers Included No
Wrist Pin Included Yes
Pin Diameter (in.) 0.990 in.
Piston Ring Thickness 5/64 in. x 1/16 in. x 3/16 in.
File Fit No
Gapless No
Remanufactured No
Quantity Sold individually.
