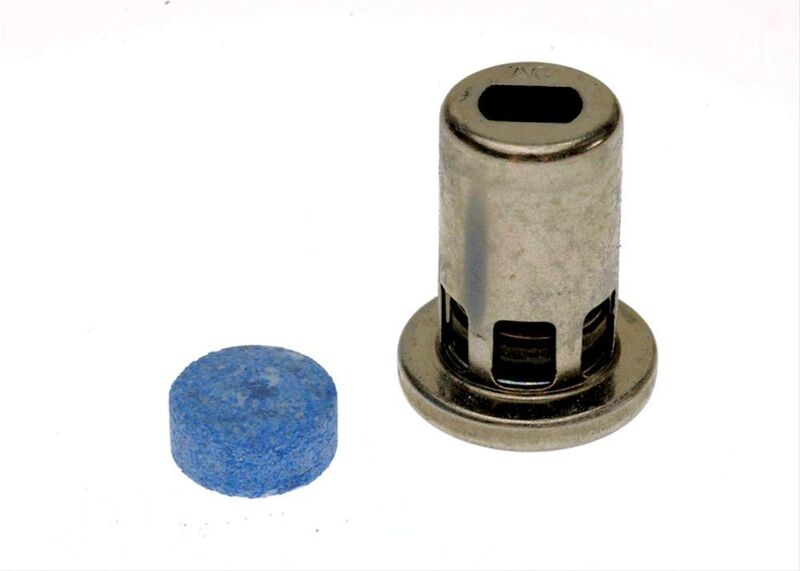

ACDelco Oil Filter Bypass Valves

Gen V & Gen VI Big Block Chevy Engines & All GM Performance Parts 454 & 502 crate engines use two of these bypass valves. Location for oil filter bypass valve is adjacent to oil filter nipple on oil filter mounting pad, Location for second valve (For oil cooler bypass) is above oil filter nipple in block on filter mounting pad. If a cooler is not connected to the oil cooler ports on the oil pan rail, the second valve is not needed. Engines using a sandwich adapter between the block and oil filter to connect a remote oil cooler must use GM # 25161284 oil filter bypass valve (in the location adjacent to oil filter nipple) to compensate for higher system backpressure.
