GM Performance Multi-Point Fuel Injection, Ram Jet Vortec, 1,000 cfm, Chevy, Small Block, ECU Not Included, Kit (PART #GMP-12498032)

These GM Performance Ram Jet Vortec fuel injection kits will allow you to put fuel injection on your old hot rod. They are designed for use on cast iron vortec and aluminum fastburn cylinder heads.

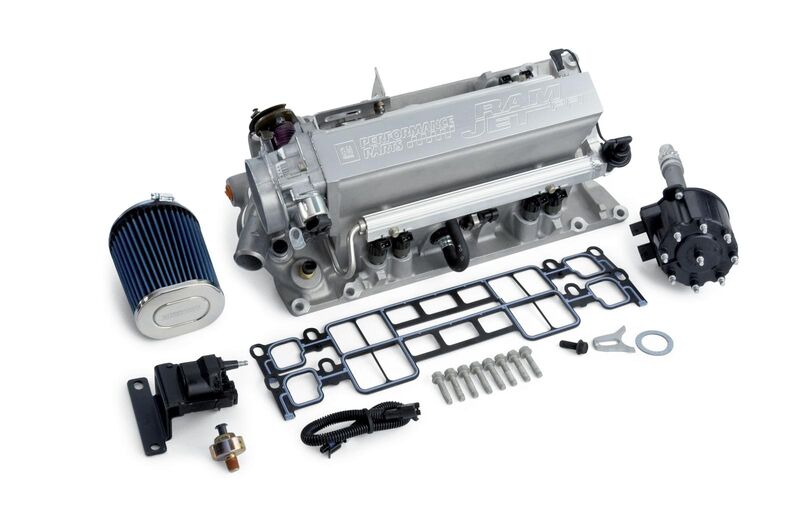

The fuel injection kits include the following:

  • Ignition coil
  • Ignition wire assembly
  • Intake manifold
  • Electronic distributor
  • Knock sensor
  • Throttle body
  • Fuel injection rails
  • Injectors
  • MAP sensor
  • Fuel pressure regulator
  • Requires the use of and aftermarket wiring harness along with an aftermarket ECM

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12498032
Part Type Fuel Injection Systems
Product Line GM Performance Ram Jet Vortec Fuel Injection Kits
Fuel Injection Style Multi-port
Timing Control Compatible No
ECM Included No
Self Tuning No
User Tunable No
EGR No
Transmission Controller Included No
Metering Style Speed density (Map-N) or speed throttle (Alpha-N)
Intake Material Aluminum
Intake Color Natural
Engine Block Deck Height Standard deck
Multi-Port Fuel Rails Included Yes
Throttle Body Included Yes
Venturi Quantity 1
Throttle Body Material Cast aluminum
Throttle Body Color Natural
Injectors Included Yes
Injector Size (lbs/hr) 22 lbs./hr.
Calibration Module Included No
Wiring Harness Included No
Oxygen Sensor Included No
Fuel Pressure Regulator Included Yes
MAP Sensor Included Yes
IAT Sensor Included Yes
TPS Sensor Included Yes
IAC Motor Included Yes
Quantity Sold as a kit.
Notes Must be used with Vortec cylinder heads. Needs aftermarket wiring harness and computer or factory GM computer with custom chip. Includes a coil wire.
