GM Performance LS3 525 HP Crate Engines
Part Number:GMP-19434648
$15,745.06
or buy now, pay later with

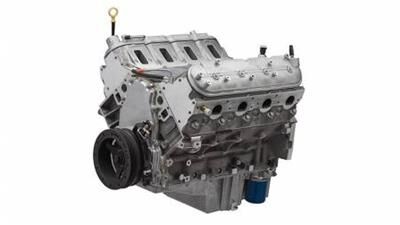

GM Performance LS3 525 HP Crate Engines (PART #GMP-19434648)
GM Performance LS3 525 hp long block crate engines blend the racing-derived ASA camshaft with the LS3 6.2L production engine to create a serious contender a delivering 525 horsepower at 6,300 rpm and 489 lb.-ft. of torque at 4,400 rpm. The ASA camshaft is a proven, power-building component that has been successful in the high-rpm world of circle track racing. Front accessories, exhaust manifolds, and flywheel or flexplate must be obtained separate, along with the engine controller kit.
Specifications:
- Power: 525 hp at 6300 rpm, 489 ft. lbs. of torque at 4400 RPM
- Displacement: 376 c.i.d., 6.2L
- Bore and stroke: 4.060 in. x 3.620 in.
- Compression ratio: 10.7:1
- Recommended fuel: 92 octane
- Cast aluminum block with 6-bolt cross-bolted main caps
- Nodular iron crankshaft
- Powdered metal steel connecting rods
- Hypereutectic aluminum pistons
- Hydraulic roller tappet camshaft
- Cam lift: 0.525 in. intake / 0.525 in. exhaust
- Cam duration at 0.050 in.: 226 degree intake / 236 degree exhaust
- Lobe separation angle: 110 degree
- Aluminum L92 cylinder heads
- Combustion chamber volume: 68cc
- Valves: 2.165 in. intake/ 1.590 in. exhaust
- Cast roller trunnion 1.7:1 ratio rocker arms
- Internal balance
- Includes a 58-tooth reluctor wheel
- Maximum recommended rpm: 6,600
Engine Includes:
- Oil pump, pick-up, and oil pan
- Harmonic balancer
- Front timing cover
- Oil filter
- Passenger side oil dipstick and tube
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 19434648 |
| Part Type | Crate Engines |
| Product Line | GM Performance LS3 525 HP Crate Engines |
| Crate Engine Family | Chevy LS |
| Actual Engine Displacement | 6.2L/376 |
| Crate Engine Cylinder Head Material | Aluminum |
| Engine Block Material | Aluminum |
| Advertised Compression Ratio | 10.7:1 |
| Assembled | Yes |
| Engine Balance | Internal |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | No |
| Cylinder Heads Included | Yes |
| Carburetor Included | No |
| Throttle Body Included | No |
| Distributor Included | No |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
