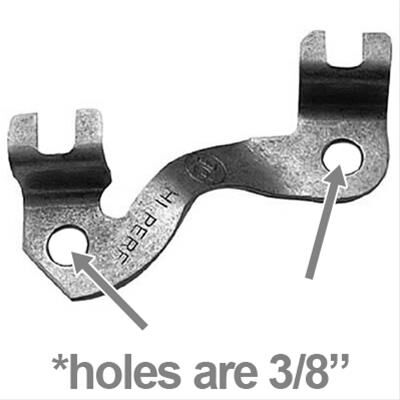

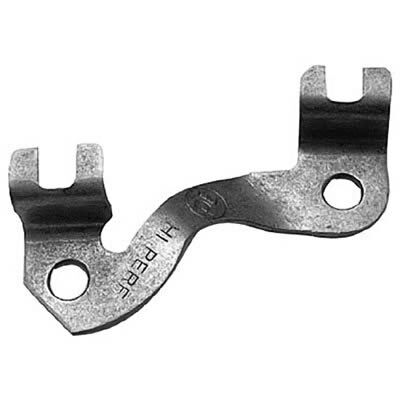

GM Performance Guide Plate, Use with 3/8 in. Pushrods, Use with Bolt Down Rockers, Chevy, Big Block, GEN V/VI, 454/502, Each (PART #GMP-12562369)

These GM Performance pushrod guideplates are intended for use in high-rpm motors. They're designed to keep your pushrods in line with your lifter cups and rocker arms and prevent deflecting or walking sideways. These guideplates are hardened to prevent them from wearing prematurely.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12562369
Part Type Guideplates
Product Line GM Performance Pushrod Guideplates
UPC 00195491152595
Guideplate Pushrod Size 3/8 in.
Guideplate Style Raised
Guideplate Material Steel
Guideplate Color Natural
Machine Work Required No
Quantity Sold individually.
Notes For Gen 5 & 6 heads only as a replacement part as they use a bolt down rocker arm with 3/8 in. thread size. Will not fit Mark IV (4) heads that use 7/16 in. studs.
