GM Performance Cylinder Head, Fast Burn, Aluminum, Bare, 62cc Chamber, 210cc Intake Runner, Chevy,
Part Number:GMP-12497186

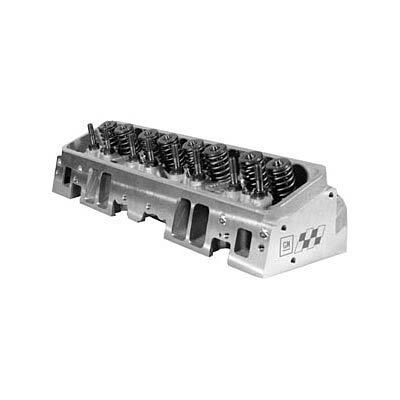

GM Performance Cylinder Head, Fast Burn, Aluminum, Bare, 62cc Chamber, 210cc Intake Runner, Chevy, Small Block, Each (PART #GMP-12497186)
These CNC-machined aluminum Fast Burn cylinder heads from GM Performance are designed for 1958-2000 283-400 c.i.d. Chevy V8s. They quickly and completely burn the air/fuel mixture, ensuring higher cylinder pressure and more power. No additional porting is required--GM Performance Parts' cast-ported technology gives these heads maximum performance right out of the box. They're drilled and tapped for Vortec and raised port manifolds, they accept flange-mount or centerbolt-style valve covers, and will support in excess of 500 HP.
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 12497186 |
| Part Type | Cylinder Heads |
| Product Line | GM Performance Fast Burn Cylinder Heads |
| Combustion Chamber Volume (cc) | 62 |
| Intake Runner Volume (cc) | 210cc |
| Cylinder Head Style | Bare |
| Cylinder Head Material | Cast aluminum |
| Intake Valve Diameter (in.) | 2.000 in. |
| CNC-Machined Combustion Chamber | No |
| CNC-Machined Intake Runner | No |
| CNC-Machined Exhaust Runner | No |
| Intake Port Location | Standard |
| Exhaust Port Shape | D-port |
| Exhaust Port Location | Standard |
| Spark Plug Style | Angle |
| Intake Valves Included | No |
| Exhaust Valves Included | No |
| Exhaust Valve Diameter (in.) | 1.550 in. |
| Valve Springs Included | No |
| Damper Spring Included | No |
| Retainers Included | No |
| Locks Included | No |
| Valve Stem Seals Included | No |
| Rocker Arm Studs Included | No |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guideplates Included | No |
| Accessory Bolt Holes Drilled | Yes |
| Valve Guides Included | Yes |
| Valve Guide Material | Bronze |
| Valve Seats Machined | No |
| Valve Seat Material | Steel |
| Cylinder Head Color | Natural |
| Steam Holes Drilled | No |
| Oiling Style | Through pushrod |
| Machined for O-Ring | No |
| Heat Crossover | No |
| Remanufactured | No |
| Quantity | Sold individually. |
