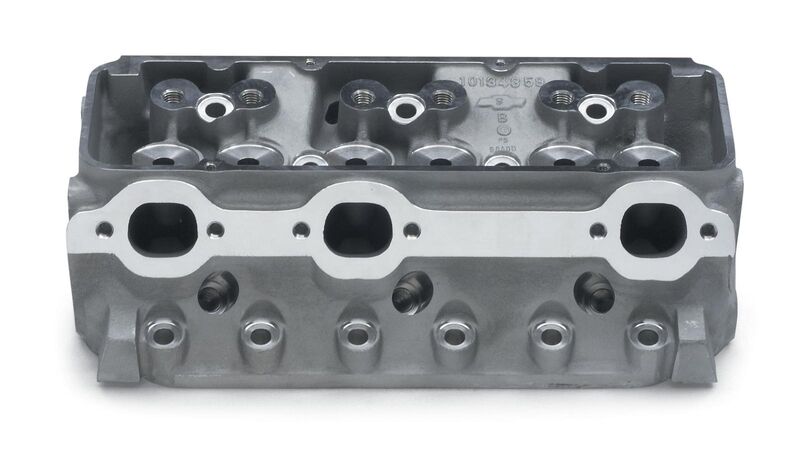

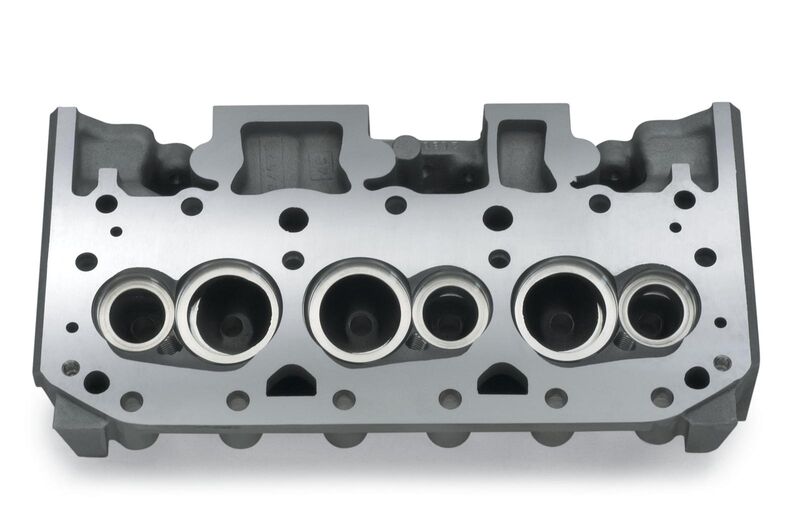

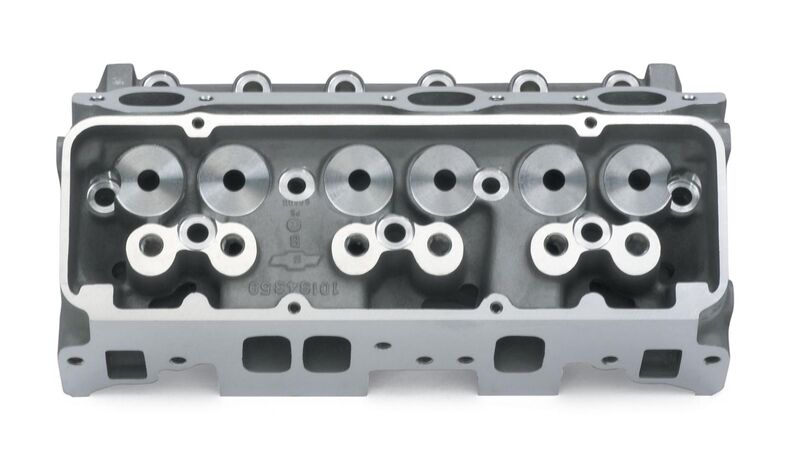

GM Performance Cylinder Head, Aluminum, Bare, 43cc Chamber, 18 Degree, GM V6/90 Degree, Each
Part Number:GMP-10134359
GM Performance Cylinder Head, Aluminum, Bare, 43cc Chamber, 18 Degree, GM V6/90 Degree, Each (PART #GMP-10134359)
Your maximum-effort competition engine deserves the maximum potential of GM Performance V6 aluminum cylinder heads. These GM heads take a different angle--an 18 degree valve angle--to improve airflow and performance. These low-port versions feature excellent flow at low valve lifts due to their tall short-side radiuses and deep valve bowls. And their shallow, wedge-shaped combustion chambers allow you to achieve high compression ratios with small piston domes. GM moves the spark plugs closer to the center bore than previous designs to improve flame travel across the chamber. Plus, their high-flow exhaust ports are higher and wider at the exhaust manifold flange than they were previously. These cylinder heads are sold without valve seats and valve guides. Join the new family of competition cylinder heads with GM Performance V6 aluminum cylinder heads and get an improved start to your custom engine build.
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 10134359 |
| Part Type | Cylinder Heads |
| Product Line | GM Performance 90 Degree V6 Cylinder Heads |
| Combustion Chamber Volume (cc) | 43 |
| Intake Runner Volume (cc) | 215cc |
| Cylinder Head Style | Bare |
| Cylinder Head Material | Cast aluminum |
| Intake Port Shape | Rectangular |
| Intake Valve Diameter (in.) | 2.150 in. |
| CNC-Machined Combustion Chamber | No |
| CNC-Machined Intake Runner | No |
| CNC-Machined Exhaust Runner | No |
| Intake Port Location | Raised |
| Exhaust Port Shape | Oval |
| Exhaust Port Location | Raised |
| Spark Plug Style | Angle |
| Intake Valves Included | No |
| Exhaust Valves Included | No |
| Exhaust Valve Diameter (in.) | 1.620 in. |
| Valve Springs Included | No |
| Damper Spring Included | No |
| Retainers Included | No |
| Locks Included | No |
| Valve Stem Seals Included | No |
| Rocker Arm Studs Included | No |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guideplates Included | No |
| Valve Cover Mounting Style | Perimeter bolt |
| Accessory Bolt Holes Drilled | Yes |
| Intake Valve Angle | 18 |
| Exhaust Valve Angle | 18 |
| Valve Guides Included | No |
| Valve Seats Machined | No |
| Cylinder Head Color | Natural |
| Steam Holes Drilled | No |
| Oiling Style | Through pushrod |
| Machined for O-Ring | No |
| Heat Crossover | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Notes | Requires aftermarket rocker arms and pushrods. Head face has an extra 0.080 in. of material for 9.1:1 compression. 2.200 in. intake valves can be used. |
