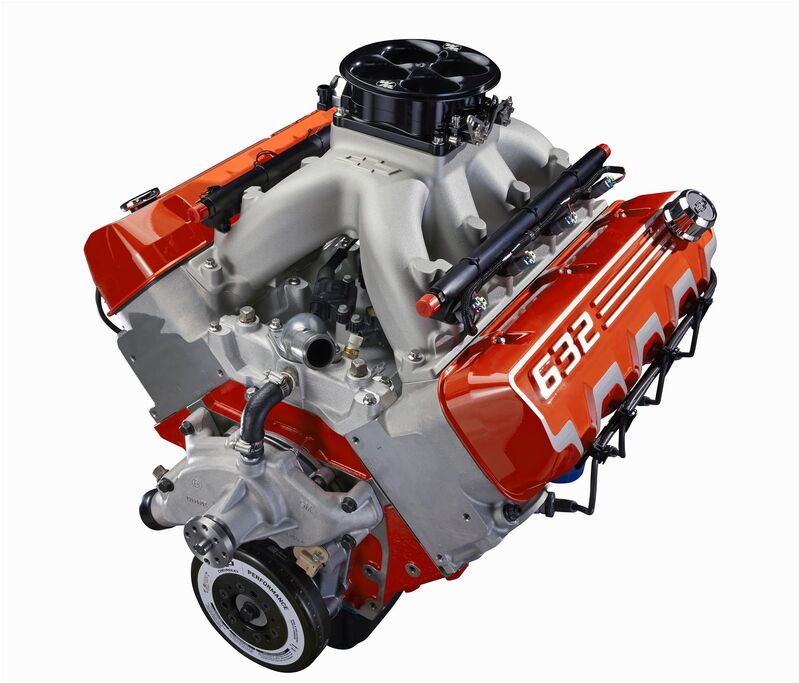

GM Performance Crate Engine, Long Block, ZZ632, Tall Deck, 4-Bolt Mains, Cast Iron Block, Aluminum Heads, 12.0:1 Compression, 4500 Flange
Part Number:GMP-19432060
GM Performance Crate Engine, Long Block, ZZ632, Tall Deck, 4-Bolt Mains, Cast Iron Block, Aluminum Heads, 12.0:1 Compression, Big Block, Chevy, Each (PART #GMP-19432060)
GM Performance's ZZ632/1000 deluxe long block crate engines are their biggest and baddest big blocks! They start with a tall deck Sportsman Bowtie block and an all-forged roller assembly, then add a hydraulic roller camshaft and high-flow spread-port CNC-machined cylinder heads derived from Pro Stock racing technology. The RS-X design cylinder heads feature symmetrical ports to produce similar power from all eight cylinders. ZZ632 crate engines have a crank-trigger ignition system with coil-near-plug ignition coils mounted on a unique valley plate. Included is a pre-programmed, self-learning control system for precise fuel control and amazing output on premium pump gas. These big block engines reach peak power at 6,600 rpm and rev to a recommended maximum of 7,000 rpm.
Technical specs:
- Bore and stroke: 4.600 in. by 4.750 in.
- Power is 1,004 hp at 6,600 rpm
- Torque is 876 lbs.-ft. at 5,600 rpm
- Cast iron block with 4-bolt mains
- Forged 4340 steel crankshaft
- Forged steel H-beam connecting rods
- Forged aluminum 2618 alloy pistons
- Aluminum high-rise single-plane intake manifold
- Dominator 4500-style throttle body
- 86 lb.-hr. fuel injectors
- Billet steel hydraulic roller camshaft
- Valve lift of 0.780 in. intake and 0.782 in. exhaust
- Camshaft duration at 0.050 in. is 270 intake and 287 exhaust
- Aluminum RS-X symmetrical spread-port cylinder heads with 70cc chambers
- Titanium 2.450 in. intake/1.800 in. exhaust valves with a 5/16 in. stem
- 58X reluctor crank-triggered, coil-near-plug ignition
- Compression ratio of 12.0:1
- Forged aluminum shaft-mount roller rocker arms with 1.8:1 ratio
- Aluminum water pump
- Steel 8-quart oil pan
- Recommended fuel: 93 octane or higher
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 19432060 |
| Part Type | Crate Engines |
| Product Line | GM Performance ZZ632/1000 Deluxe Long Block Crate Engines |
| Crate Engine Family | Chevy Big Block |
| Actual Engine Displacement | 10.3L/632 |
| Crate Engine Cylinder Head Material | Aluminum |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 12.0:1 |
| Assembled | Yes |
| Engine Balance | Internal |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | Yes |
| Intake Manifold Style | Fuel Injection |
| Cylinder Heads Included | Yes |
| Carburetor Included | No |
| Throttle Body Included | Yes |
| Distributor Included | No |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | Yes |
| Wiring Harness Included | Yes |
| Water Pump Style | Short |
| Supercharger Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Notes | Will require an internal balance flywheel or flexplate. |
| Special Attention | Features a 4500 Dominator style flange throttle body that will need to be installed. Requires an EFI compatible high pressure fuel pump, starter, and air cleaner with 4500 style flange. Custom exhaust system required due to cylinder head port design. Not intended for marine use. |
