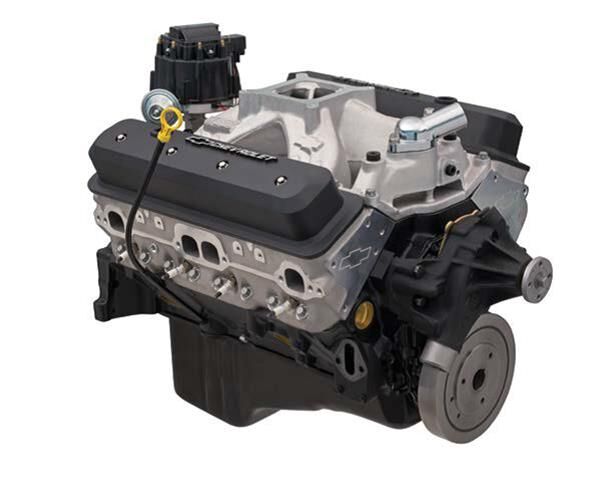

GM Performance Crate Engine, Long Block, ZZ6, 350, Small Block, Aluminum Cylinder Heads, 405 HP,
Part Number:GMP-19417576
GM Performance Crate Engine, Long Block, ZZ6, 350, Small Block, Aluminum Cylinder Heads, 405 HP, Each (PART #GMP-19417576)
Meet the newest member of the iconic 350-based ZZ engine familyaZZ6! GM Performance has rated these base crates to really deliver the power, thanks in part to their unique, lightweight aluminum cylinder heads that enable optimal airflow at high rpm. The engines are based on the proven Fast Burn design with large intake runners and valves. Along with their beehive-style valve springs that offer high-rpm efficiency and durability, the ZZ6 blocks make the most of every cubic inch of air drawn through them. Supporting the massive flow of air is an aggressive hydraulic roller camshaft and a forged steel crankshaft. The ZZ6 350 c.i.d. base crate engine kit includes intake manifold, distributor, water pump, damper, flexplate, and the distinctive, race-inspired valve covers.
The legendary ZZ6 tech specs are:
- Cast iron block with 4-bolt mains
- Bore x stroke: 4.000 x 3.48
- Valve lift (in.): .474 intake/.510 exhaust
- Camshaft duration at .050 in.: 208 degree intake/221 degree exhaust
- Valve size (in.): 2.000 intake/1.550 exhaust
- Compression ratio is 9.72:1 nominal
- Aluminum roller-style rocker arms
- Rocker arm ratio is 1.5:1
- Recommended fuel: Premium pump
- Distributor: HEI
- Ignition timing: 36 degree total @ 4,000 rpm
- Maximum recommended rpm: 5,800
- Balance: external
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 19417576 |
| Part Type | Crate Engines |
| Product Line | GM Performance ZZ6 350 C.I.D. Base Crate Engines |
| Crate Engine Family | Chevy Small Block |
| Actual Engine Displacement | 5.7L/350 |
| Crate Engine Cylinder Head Material | Aluminum |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 9.7:1 |
| Assembled | Yes |
| Engine Balance | External |
| Cam Style | Hydraulic roller, OE roller |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | Yes |
| Intake Manifold Style | Carbureted |
| Cylinder Heads Included | Yes |
| Carburetor Included | No |
| Throttle Body Included | No |
| Distributor Included | Yes |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Flexplate Included | Yes |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Water Pump Style | Long |
| Supercharger Included | No |
| Remanufactured | No |
| Quantity | Sold as a kit. |
