GM Performance Crate Engine, 350 Turnkey Long Block Crate Engine, 4 Bolt Main, External Balance, Cast Iron Block and Vortec Heads, Harmonic Balancer
Part Number:GMP-19433038
GM Performance Crate Engine, 350 Turnkey Long Block Crate Engine, 4 Bolt Main, External Balance, Cast Iron Block and Vortec Heads, Chevy, Each (PART #GMP-19433038)

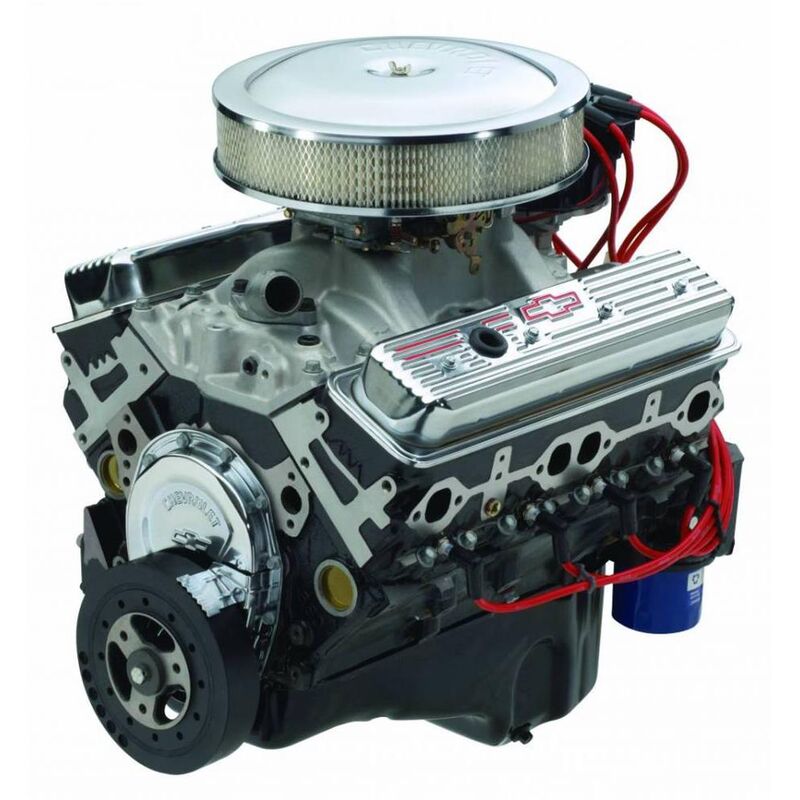

This GM Performance 5.7L 350 c.i.d. HO turnkey long block crate engine is assembled with brand new components from General Motors. Starting with a new GM 4-bolt main block, it includes the cast iron high-flow Vortec heads, dual-plane aluminum intake manifold, 9.0:1 compression ratio, and a hydraulic flat tappet camshaft that provides you 333 hp and 381 lbs.-ft. of torque. It includes a GM HEI distributor, a 670 cfm Holley carburetor, and is shipped with a 153-tooth small diameter flexplate.
Engine specs:
- Block: Cast Iron, 4-bolt main caps, 1-piece rear seal
- Compression Ratio: 9.1:1
- Crankshaft: Cast Nodular, 3.480 in. Stroke
- Duration at 0.050 I/E: 212 / 222
- Camshaft Lift: 0.435 in. / 0.460 in. Hydraulic Flat Tappet
- Heads, Chamber Size: Vortec iron, 64cc
- Horsepower: 330 hp at 5,000 rpm
- Intake Manifold: Aluminum Dual Plane
- Torque: 380 lbs.-ft. at 3,800 rpm
- Valves (I/E) (in.): 1.940 / 1.600
- Condition: New
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 19433038 |
| Part Type | Crate Engines |
| Product Line | GM Performance 5.7L 350 C.I.D Turnkey Long Block Crate Engines |
| Crate Engine Family | Chevy Small Block |
| Actual Engine Displacement | 5.7L/350 |
| Crate Engine Cylinder Head Material | Cast iron |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 9.0:1 |
| Assembled | Yes |
| Engine Balance | Internal |
| Cam Style | Hydraulic flat tappet |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | Yes |
| Intake Manifold Style | Carbureted |
| Cylinder Heads Included | Yes |
| Carburetor Included | Yes |
| Throttle Body Included | No |
| Distributor Included | Yes |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | Yes |
| Flywheel Included | No |
| Air Cleaner Included | Yes |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
| Notes | Camshaft lift is .435 intake / .460 exhaust. Camshaft duration at .050 in. is 212 degrees intake and 221 degrees exhaust. Motor includes cast iron Vortec heads. |
