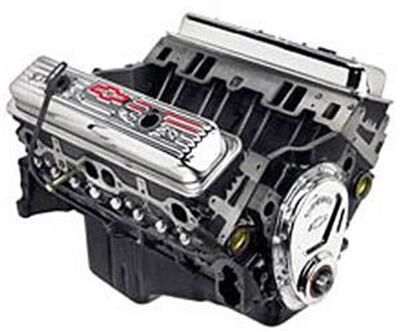

GM Performance Crate Engine, 350 HO Base, Cast Iron Block, Iron Vortec Cylinder Heads, 330 hp/381
Part Number:GMP-19433030
GM Performance Crate Engine, 350 HO Base, Cast Iron Block, Iron Vortec Cylinder Heads, 330 hp/381 lbs.-ft. Torque, 4-Bolt Mains, Chevy, Each (PART #GMP-19433030)
You won't go broke finishing off your project car with this 350 Vortec c.i.d. HO turn-key crate engine from GM Performance! It's packed with all the features you need to get a reliable 330 hp and 380 lbs.-ft. of torque from a dependable, time-tested combination of GM Performance Parts. Of course, all the components used in this engine are brand new, not remanufactured parts like the competition is trying to sell you. Designed by GMPP's in-house engineers to give you maximum return for your hot rod dollar, the 350 HO Turn-Key is a great choice for your small-block crate engine needs.
The 350 HO is based on a tough, Chevy 4-bolt block that holds a strong nodular iron crankshaft, good rods, and aluminum pistons. The high-lift camshaft gives the engine its own unique, aggressive idle. The cam is based on the same one found in 1965-67 Corvette 327 engines, but with more lift and duration.
More product features, items, and specifications include:
- Power - 330 hp at 5,000 rpm, 380 lbs.-ft. of torque at 3,800 rpm
- Displacement - 350 c.i.d., 5.7L
- Bore x stroke - 4.000 in. x 3.480 in.
- Compression ratio - 9.0:1
- Recommended fuel - 92 octane
- Block - cast Iron, one-piece rear seal, 4-bolt main caps
- Crankshaft - nodular iron
- Connecting rods - powdered metal steel
- Pistons - cast aluminum
- Camshaft - hydraulic flat tappet
- Cam lift - 0.435 in. intake / 0.460 in. exhaust
- Cam duration at .050 in. - 212 degrees intake / 222 degrees exhaust
- LSA (Lobe Separation Angle) - 112.5 degrees
- Cylinder heads - Vortec cast iron, 3/8 in. pressed-in rocker studs
- Combustion chamber - 64cc
- Valves - 1.940 in. intake/ 1.500 in. exhaust
- Rocker arms - stamped steel, 1.5:1 ratio
- Valve springs - 10212811
- Balance: external
- Maximum GM recommended RPM - 5,500
- Ignition timing - base 10 degrees BTDC, 32 degrees total
- Fully GM assembled long block
- Chrome steel valve covers with Chevy Bowtie logo
- Oil pump, pick-up and oil pan
- Front timing cover
- Passenger side RH oil dipstick and tube
SPECIFICATIONS |
|
| Brand | GM Performance |
| Manufacturer's Part Number | 19433030 |
| Part Type | Crate Engines |
| Product Line | GM Performance 350 Vortec C.I.D. 330 HP Crate Engines |
| Crate Engine Family | Chevy Small Block |
| Actual Engine Displacement | 5.7L/350 |
| Crate Engine Cylinder Head Material | Cast iron |
| Engine Block Material | Cast iron |
| Advertised Compression Ratio | 9.0:1 |
| Assembled | Yes |
| Engine Balance | External |
| Cam Style | Hydraulic flat tappet |
| Rear Main Seal Style | 1-piece |
| Intake Manifold Included | No |
| Cylinder Heads Included | Yes |
| Carburetor Included | No |
| Throttle Body Included | No |
| Distributor Included | No |
| Oil Pan Included | Yes |
| Valve Covers Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | No |
| Flexplate Included | No |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| Supercharger Included | No |
| Remanufactured | No |
| Quantity | Sold individually. |
