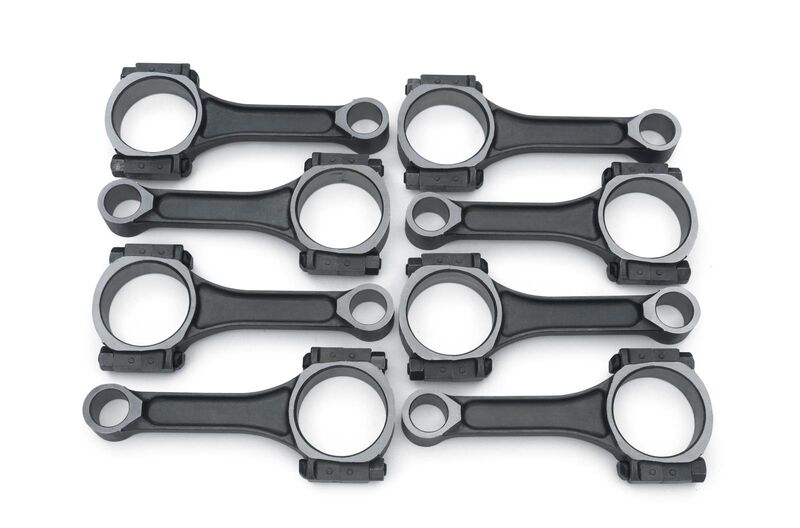

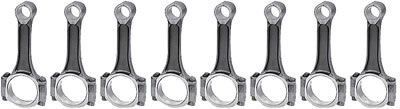

GM Performance Connecting Rods, 4740 I-Beam, Press Fit, Chevy, Small Block, Set of 8 (PART #GMP-12495071)

Put a set of GM Performance connecting rods in your engine. They are guaranteed performers and have been proven time and time again in the popular LT1 and LT4 engines. Whether you're rebuilding your late model or putting together a budget street-pounder, a set of GM rods will get the job done.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12495071
Part Type Connecting Rods
Product Line GM Performance Connecting Rods
Connecting Rod Length Center to Center (in.) 5.700 in.
Connecting Rod Beam Style I-beam
Connecting Rod Material Powdered metal
Wrist Pin Style Press-fit
Pin End Bore Diameter 0.927 in.
Rod Journal Diameter (in.) 2.100
Big End Bore Diameter (in.) 2.2250
Quantity Sold as a set of 8.
Cap Retention Style Through-bolt
Clearanced for Stroker No
Connecting Rod Bolt Brand GM Performance Parts
Connecting Rod Bolt Diameter 3/8 in.
Connecting Rod Bolt Material 4740 chromoly alloy
Fastener Tensile Strength (psi) 140,000 psi
Connecting Rod Bolt Head Style Hex head
Advertised Horsepower Rating 500 hp
Advertised RPM Rating 6,500 rpm
Weight Matched Set No
Remanufactured No
Magnafluxed Yes
Connecting Rod Color Polished and shot-peened
