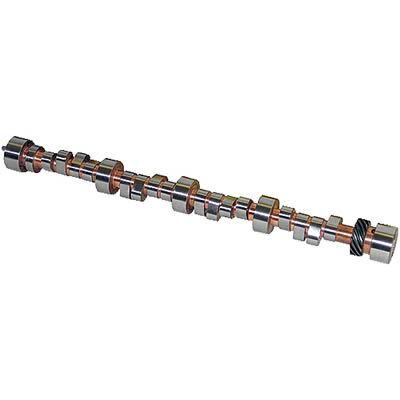

GM Performance Camshaft, Hydraulic Roller, 211/230 Duration, 0.510/0.540 Lift, Chevrolet, Big Block, Each (PART #GMP-24502611)

These GM Performance hydraulic roller camshafts feature a special lobe pattern for balanced intake and exhaust flow. Different profiles are offered to produce maximum low, mid, or upper rpm power.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 24502611
Part Type Camshafts
Product Line GM Performance Hydraulic Roller Camshafts
Cam Style Hydraulic roller, OE roller
Camshaft Use Street/Strip
Camshaft Manufacturers Description 502 and 454 HO crate engine replacement camshaft.
Intake Duration at 050 inch Lift 211
Exhaust Duration at 050 inch Lift 230
Duration at 050 inch Lift 211 int./230 exh.
Intake Valve Lift with Factory Rocker Arm Ratio 0.510 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio 0.540 in.
Valve Lift with Factory Rocker Arm Ratio 0.510 int./0.540 exh.
Lobe Separation (degrees) 112
Camshaft Gear Attachment 3-bolt
Remanufactured No
Computer-Controlled Compatible No
Valve Springs Required Yes
Quantity Sold individually.
Notes Cam has lobe for mechanical fuel pump.
