GM Performance Cam and Valvetrain, Hydraulic Roller Tappet, Duration at .050 in. 218/228, Lift .525/.525, Chevy, 5.7L (PART #GMP-12480002)

These LT4 Hot Cam hydraulic roller cam kits from GM Performance are direct replacements for your stock LT4 hydraulic roller cam and lifters. They are designed to make your Corvette perform like it just rolled off the showroom floor.

SPECIFICATIONS

Brand GM Performance
Manufacturer's Part Number 12480002
Part Type Camshafts
Product Line GM Performance LT4 Hot Cam Hydraulic Roller Cam Kits
Cam Style Hydraulic roller, OE roller
Camshaft Use Street/Strip
Basic Operating RPM Range Idle-6,000
Intake Duration at 050 inch Lift 218
Exhaust Duration at 050 inch Lift 228
Duration at 050 inch Lift 218 int./228 exh.
Intake Valve Lift with Factory Rocker Arm Ratio 0.525 in.
Exhaust Valve Lift with Factory Rocker Arm Ratio 0.525 in.
Valve Lift with Factory Rocker Arm Ratio 0.525 int./0.525 exh.
Lobe Separation (degrees) 112
Remanufactured No
Computer-Controlled Compatible Yes
Valve Springs Required Yes
Quantity Sold as a kit.

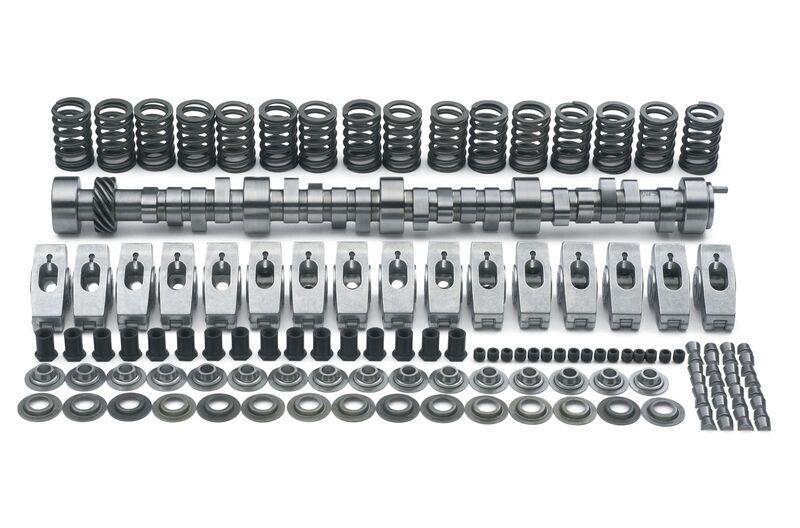

Notes Each kit includes valve springs, retainers, and 1.6 full roller rocker arms. Valve spring height = 1.780 in. Intake centerline = 109A
