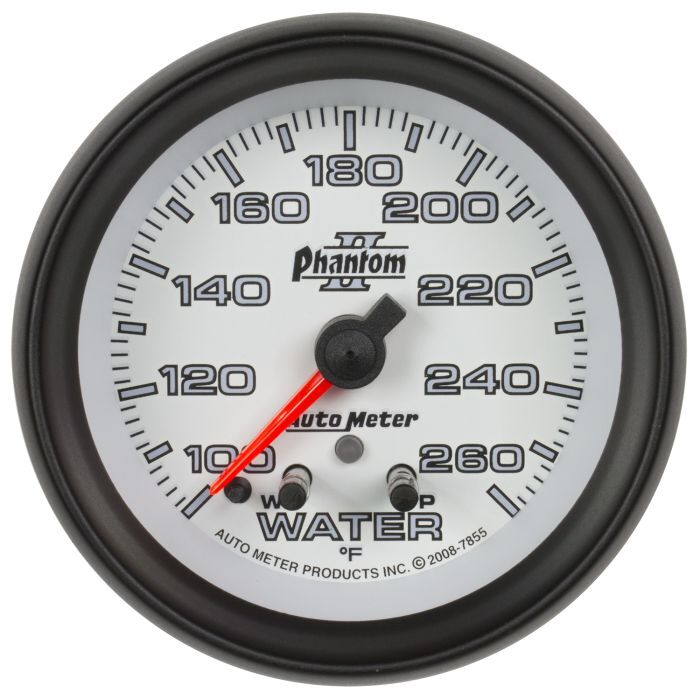

Autometer Gauge, Water Temp, 2 5/8", 260ºf, Stepper Motor W/ Peak & Warn, Phantom Ii, Phantom Ii (SKU: AMT-7855)

Engines don’t like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
  • Acquire data for later review with one-touch Peak Recall functionality
  • Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
  • Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

SPECIFICATIONS

Series PHANTOM II
Product Type Gauge Water Temp
Dial Color White
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 66.7mm
Size (Standard) 2-5/8"
Cup/Hole Size (Metric) 66.7mm
Cup/Hole Size (Standard) 2-5/8"
Outer Bezel Diameter 2-7/8"
Lighting Type LED
Lighting Color White
Pointer Color Fluorescent Red
Movement Electric, Digital Stepper Motor
Gauge Type Water Temperature
Range 100-260 °F
Includes (Replacement) Sensor Unit 2252
Includes (Replacement) Adapter/Fitting 3/8" NPT and 1/2" NPT adapter fittings
Includes (Replacement) Wire Harness 5226
Includes (Replacement) Mounting Hardware 3245
Instruction Manual Part Number 2650-1133
