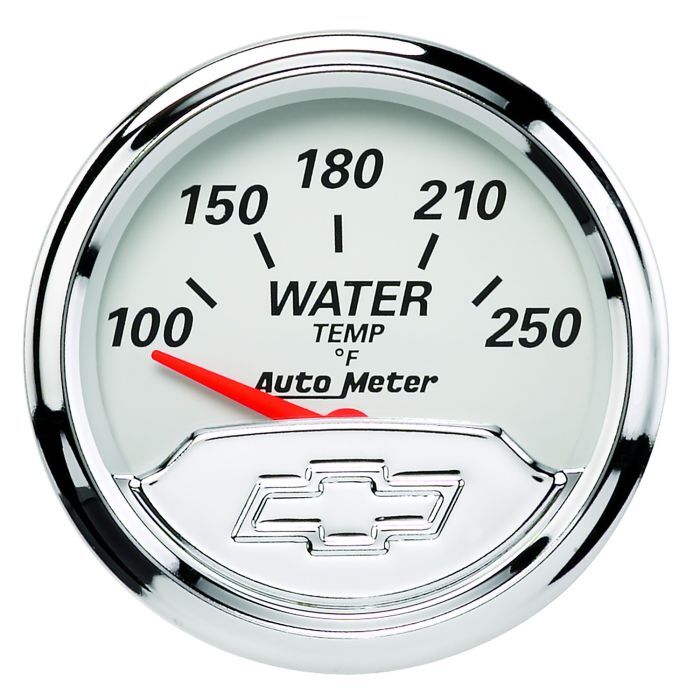

Autometer Gauge, Water Temp, 2 1/16", 250ºf, Elec, Chevrolet Heritage Bowtie, Chevy Vintage (SKU: AMT-1337-00408)

A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s advanced 1/8” NPT temperature transducer is included for a simple installation on any application.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SPECIFICATIONS

Series CHEVY VINTAGE
Product Type Gauge Water Temp
Dial Color White
Lens Style Domed, Clear
Bezel Color Chrome
Bezel Style Street Rod
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-15/64"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Water Temperature
Range 100-250 °F
Includes (Replacement) Sensor Unit 2258
Includes (Replacement) Adapter/Fitting 3/8" NPT and 1/2" NPT adapter fittings
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1079
