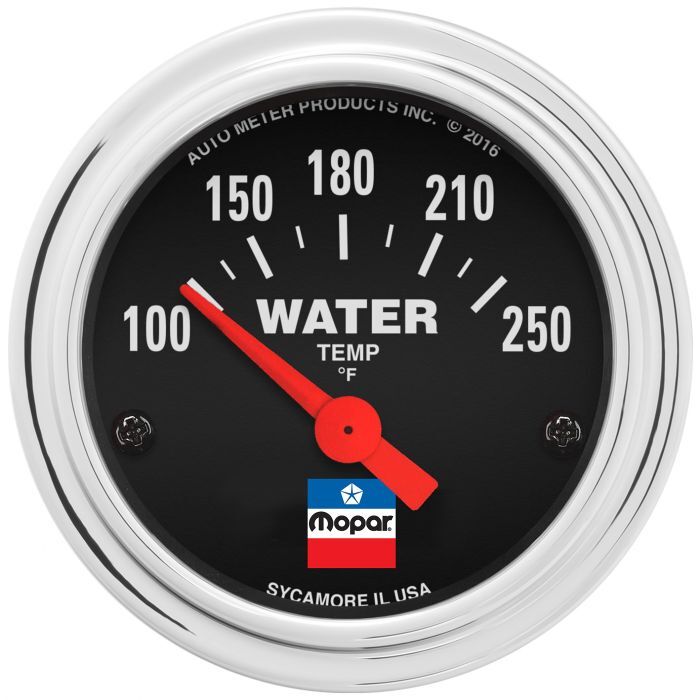

Autometer Gauge, Water Temp, 2-1/16", 100-250`F, Elec, Mopar Classic, Mopar Classic (SKU: AMT-880787)

You’ve made your vehicle fast with Mopar® parts, now it’s time to protect your investment with a complement of instruments you can trust to keep you informed of what’s really going on under the hood. Officially licensed Mopar® Classic Gauges from AutoMeter are backed by accurate and reliable, track-tested, race-proven electric performance movements finished in chrome bezels and easy to read black dials emblazoned with the red, white, and blue Mopar® heritage logo. A high water temperatre can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter’s accurate 1/8” NPT temperature sensor is included with brass adapters for 3/8" and 1/2" NPT ports ensuring a simple installation on classic Mopar® engines.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SPECIFICATIONS

Series MOPAR CLASSIC
Product Type Gauge Water Temp
Dial Color Black
Lens Style Flat, Clear
Bezel Color Chrome
Bezel Style SAE
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-5/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Water Temperature
Range 100-250 °F
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1079
