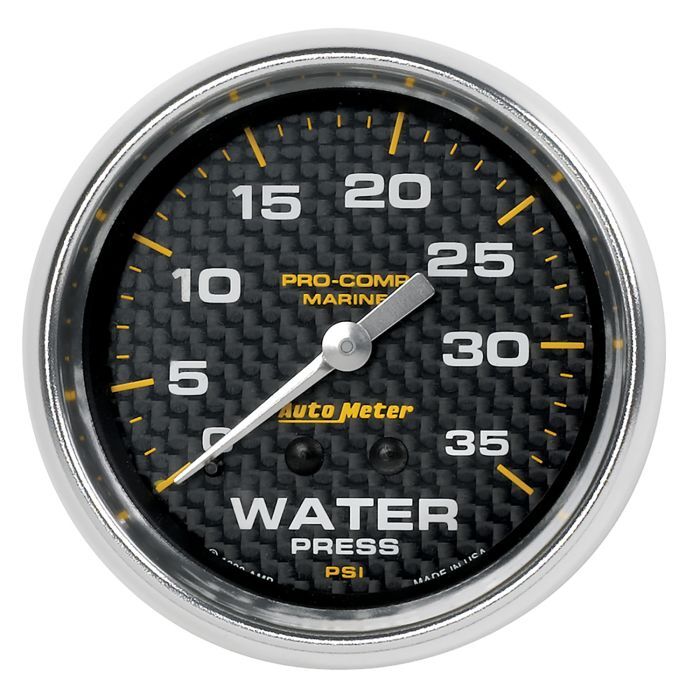

Autometer Gauge, Water Press, 2 5/8", 35Psi, Mechanical, Marine Carbon Fiber, Marine Carbon Fiber (SKU: AMT-200773-40)

From high banked ovals to Saturday night 1/4 miles to high-performance boats, knowing that you’ve got proper cooling system pressure is critical in any application. AutoMeter’s Mechanical Water Pressure Gauge utilizes the most precise bourdon tube meter movement on the market to deliver accuracy and durability you won’t find anywhere else. An 1/8” NPT connection on the back makes for easy installation and nylon lines and fittings are available separately.

  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • Traditional incandescent lighting illuminates around the perimeter of the dial

SPECIFICATIONS

Series MARINE CARBON FIBER
Product Type Gauge Water Press
Dial Color Carbon Fiber
Lens Style Flat, Clear
Bezel Color Polished Aluminum
Bezel Style Super Bezel
Size (Metric) 66.7mm
Size (Standard) 2-5/8"
Cup/Hole Size (Metric) 66.7mm
Cup/Hole Size (Standard) 2-5/8"
Outer Bezel Diameter 2-7/8"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Silver
Movement Mechanical
Gauge Type Water Pressure
Range 0-35 PSI
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2226
Instruction Manual Part Number 2650-1606
