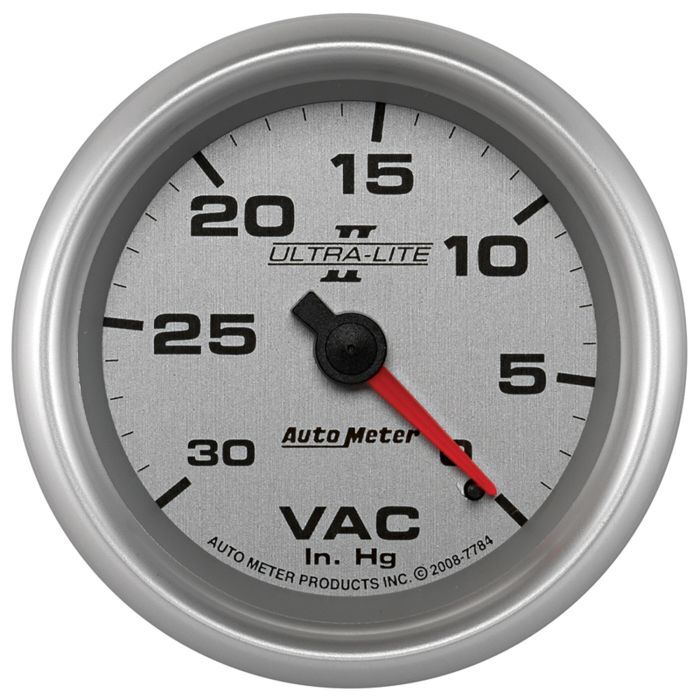

Autometer Gauge, Vacuum, 2 5/8", 30Inhg, Mechanical, Ultra-Lite Ii, Ultra-Lite Ii (SKU: AMT-7784)

Whether tuning your vehicle for maximum performance or monitoring your driving for maximum fuel economy, AutoMeter’s Mechanical Vacuum Gauge has been the solution trusted by professionals for years. An ultra precise bourdon tube meter movement sits at the heart of this instrument, providing the kind of accuracy and durability necessary to compete at the highest levels. A simple 1/8” NPT fitting on the back makes installation easy, and 1/8” nylon line and fittings are included.

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/8” nylon line, T-Fitting, vacuum fitting, compression fittings, mounting hardware, and detailed instructions for installation

SPECIFICATIONS

Series ULTRA-LITE II
Product Type Gauge Vacuum
Dial Color Silver
Lens Style Flat, Clear
Bezel Color Brushed Aluminum
Bezel Style Super Bezel
Size (Metric) 66.7mm
Size (Standard) 2-5/8"
Cup/Hole Size (Metric) 66.7mm
Cup/Hole Size (Standard) 2-5/8"
Outer Bezel Diameter 2-7/8"
Lighting Type LED
Lighting Color White
Pointer Color Fluorescent Red
Movement Mechanical
Gauge Type Vacuum
Range 0-30 IN HG
Includes (Replacement) Adapter/Fitting 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, T - Fitting
Includes (Replacement) Tubing 10 ft. nylon tubing
Includes (Replacement) Mounting Hardware 3245
Instruction Manual Part Number 2650-1606
