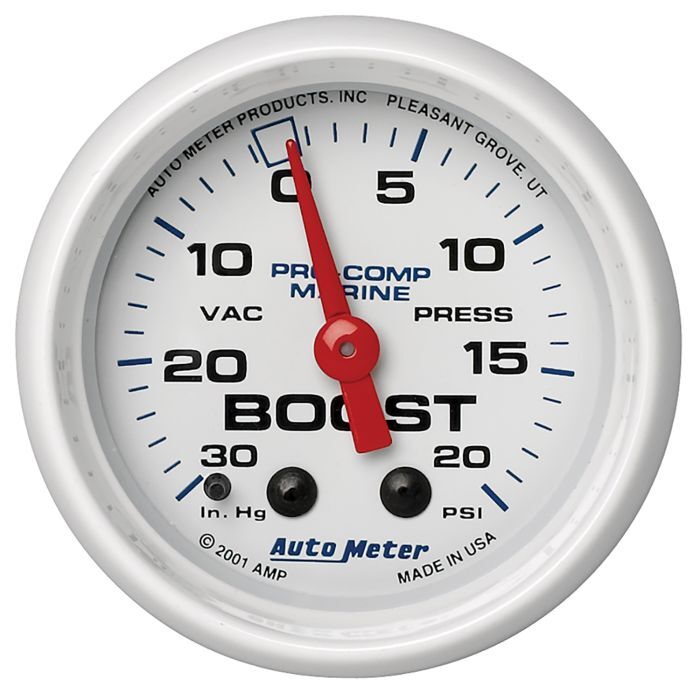

Autometer Gauge, Vac/Boost, 2 1/16", 30Inhg-20Psi, Mechanical, Marine White, Marine White (SKU: AMT-200774)

The standard in the industry, AutoMeter’s Mechanical Boost/Vac gauges have found their way into more builds than any other. Using a patented, high precision bourdon tube meter movement, there isn’t another gauge on the market that can lay claim to the levels of accuracy or durability you’ll find here. A simple 1/8” NPT pressure connection requires no electrical hookup for operation. Appropriate 1/8” NPT fittings and line kits are available separately.

  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter 3223 nylon tubing kit (10 ft.) to connect from gauge to pressure source (sold separately) - Marine parts distributors may also offer their own tubing solutions
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • Traditional incandescent lighting illuminates around the perimeter of the dial

SPECIFICATIONS

Series MARINE WHITE
Product Type Gauge Boost
Dial Color White
Lens Style Flat, Clear
Bezel Color White
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Mechanical
Gauge Type Vacuum/Boost
Range 30 IN HG/20 PSI
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2225
Instruction Manual Part Number 2650-1606
