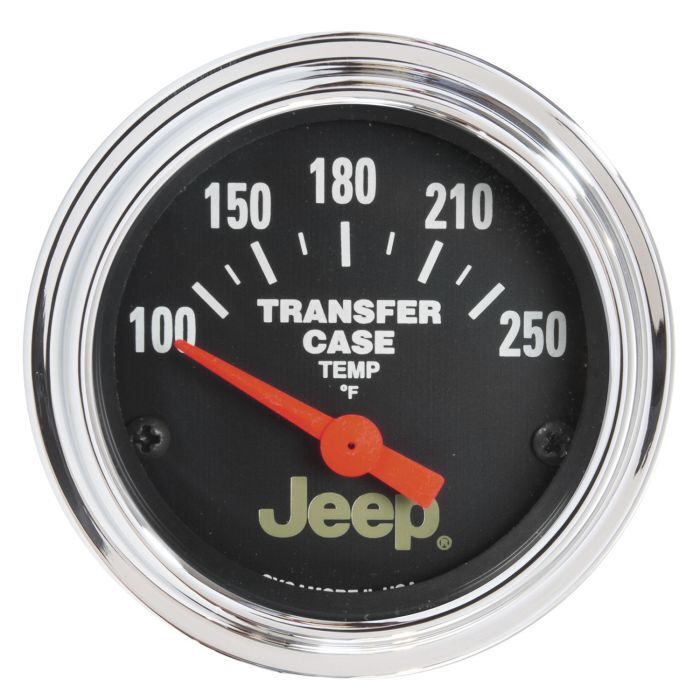

Autometer Gauge, Transfer Case Temp, 2 1/16", 250ºf, Elec, Jeep, Jeep (SKU: AMT-880430)

High transfer case temps mean the difference between having 4WD and not having 4WD. Monitoring this critical parameter ensures that your cooling system is performing properly and your transfer case will continue to transfer the power to all of the drivetrain. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender is included.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SPECIFICATIONS

Series JEEP
Product Type Gauge Transmission Temp
Dial Color Black
Lens Style Flat, Clear
Bezel Color Chrome
Bezel Style SAE
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-5/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Transfer Case Temperature
Range 100-250 °F
Includes (Replacement) Sensor Unit 2258
Includes (Replacement) Adapter/Fitting 3/8" NPT and 1/2" NPT adapter fittings
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1079
