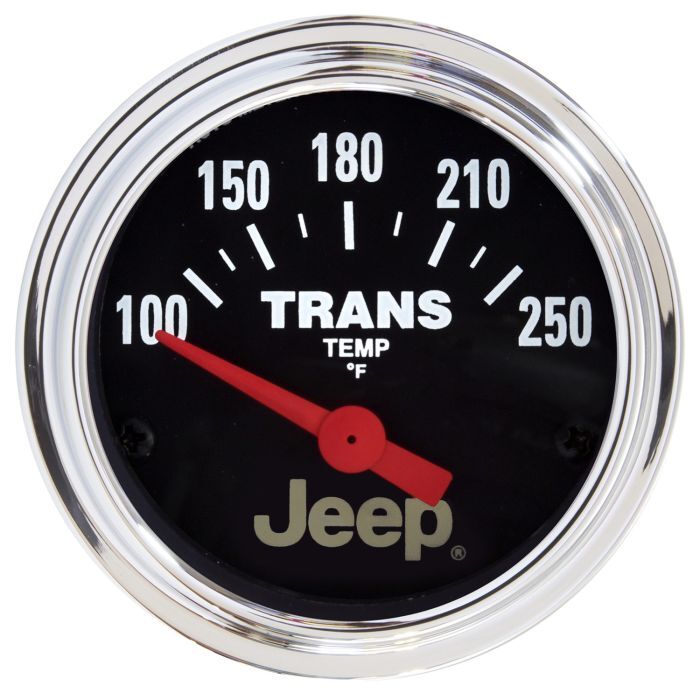

Autometer Gauge, Trans Temp, 2 1/16", 250ºf, Elec, Jeep, Jeep (SKU: AMT-880260)

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you’re towing or simply trying to harness the power of a built or boosted motor, AutoMeter’s Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8” NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8” NPT temperature sender, 3/8” and 1/2" NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle

SPECIFICATIONS

Series JEEP
Product Type Gauge Transmission Temp
Dial Color Black
Lens Style Flat, Clear
Bezel Color Chrome
Bezel Style SAE
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-5/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Transmission Temperature
Range 100-250 °F
Includes (Replacement) Sensor Unit 2258
Includes (Replacement) Adapter/Fitting 3/8" NPT and 1/2" NPT adapter fittings
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1079
