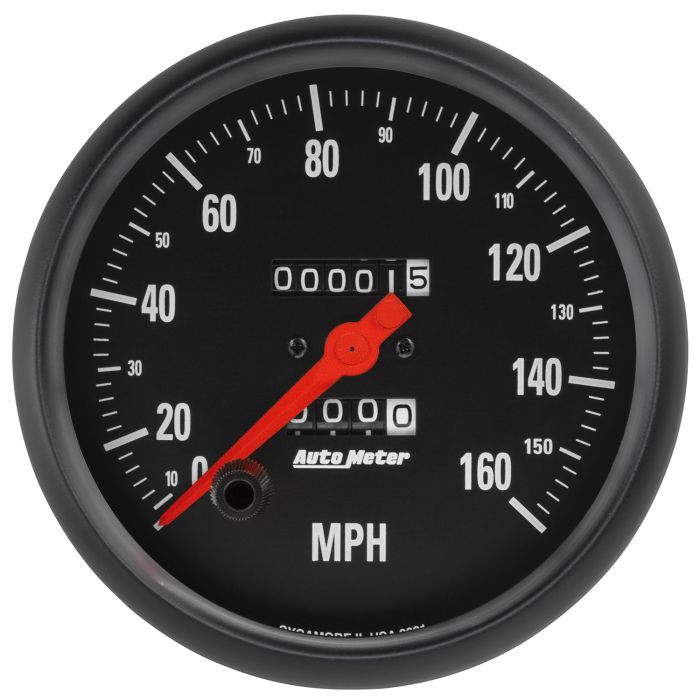

Autometer Gauge, Speedometer, 5", 160Mph, Mechanical, Z-Series, Z-SeriesLS Cathedral Port/SBC/SBF 8mm Bronze , .502” O.D. , Ea. (SKU: AMT-2691)

Proving a top quality Speedometer doesn’t have to cost a fortune, AutoMeter’s Mechanical Speedometers are a great solution for any vehicle with a cable drive transmission. Using a 5/8”-18 fitting on the back and calibrated for 1000 rpm at 60 mph, these simple, accurate and durable units have been time tested to provide great performance and exceptional value.

  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • Traditional rolling drum odometer and resetable tripmeter
  • Accepts a 5/8" x 18 thread speedometer cable
  • Calibrated for 60 MPH at 1,000 cable RPM
  • Traditional incandescent lighting illuminates around the perimeter of the dial

SPECIFICATIONS

Series Z-SERIES
Product Type Gauge Speedometer
Dial Color Black
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 127mm
Size (Standard) 5"
Cup/Hole Size (Metric) 117.5mm
Cup/Hole Size (Standard) 4-5/8"
Outer Bezel Diameter 4-15/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Mechanical
Gauge Type Speedometer
Range 0-160 MPH
Includes (Replacement) Bulb & Socket 3211
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware Bracket Included
Instruction Manual Part Number 2650-546X
