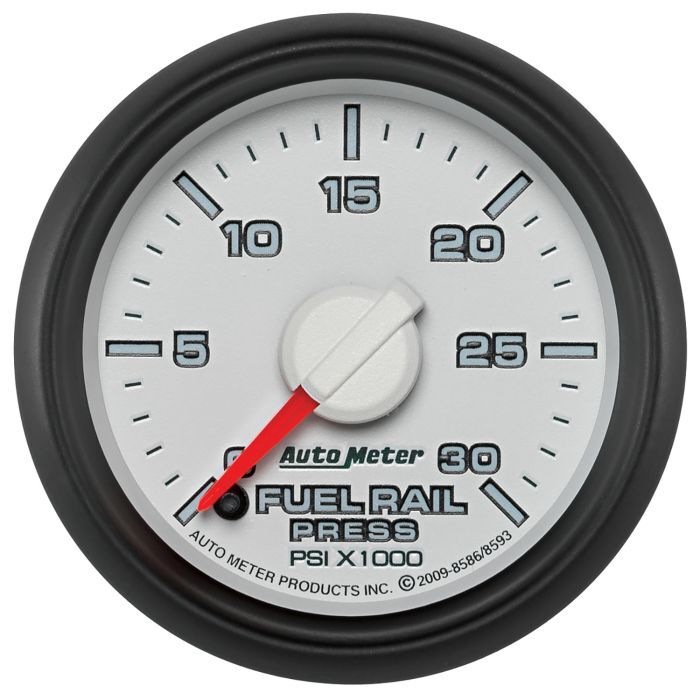

Autometer Gauge, Rail Press, 2 1/16", 30Kpsi, Digital Stepper Motor, Ram Gen 3 Fact. Match, Gen 3 Do (SKU: AMT-8586)

Ultra high pressures in modern direct injected diesel applications require precise monitoring to assure the longevity and power output of your engine. Using AutoMeter’s advanced Digital Stepper Motor Drive, this gauge provide the most accurate possible reading, professional grade reliability and smooth pointer movement. Connects directly to your factory sensor with an included wiring harness.

  • Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
  • Gauge kit includes wiring harness, mounting hardware, and detailed instructions for installation
  • Included wire harness connects to original equipment fuel rail pressure sensor wiring
  • AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system

SPECIFICATIONS

Series GEN 3 DODGE FACTORY MATCH
Product Type Gauge Rail Press
Dial Color White
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED
Lighting Color Green
Pointer Color Fluorescent Red
Movement Electric, Digital Stepper Motor
Gauge Type Fuel Rail Pressure
Range 0-30K PSI
Includes (Replacement) Wire Harness Call Auto Meter Technical Support At 1-866-248-6357
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1481
