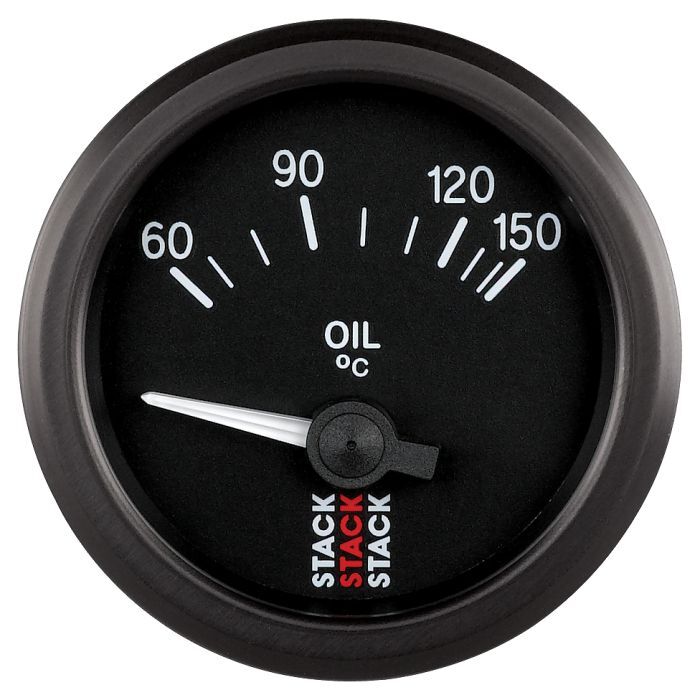

Autometer Gauge, Oil Temp, Electric, 52mm, Blk, 60-150ºc, M10 Male, Stack Instruments (SKU: STK-ST3209)

Stack's low-priced electrical auxiliary instruments feature advanced 90° air-core movements and simple 3-wire installation. Electrical sensors keep hazardous fluids in the engine compartment. White LED backlighting and illuminated needle ensure excellent readability day or night.

  • 90° sweep
  • No large connectors and tubing coming out the back.
  • Can be mounted in more unusual positions without connections showing.
  • Easier to install in tight areas.
  • Easier to install a great distance from the item being measured.
  • Stops fluids from entering the passenger compartment.

SPECIFICATIONS

Series STACK INSTRUMENTS
Product Type Gauge Oil Temp
Dial Color Black
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Stack
Size (Metric) 52.4mm
Size (Standard) 2.0625"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2.0625"
Outer Bezel Diameter 2.225"
Lighting Type LED
Lighting Color White
Pointer Color White
Movement Electric, Air-Core
Gauge Type Oil Temperature
Range 60-150ºC
Includes (Replacement) Sensor Unit ST262256
Instruction Manual Part Number 2650-1295
