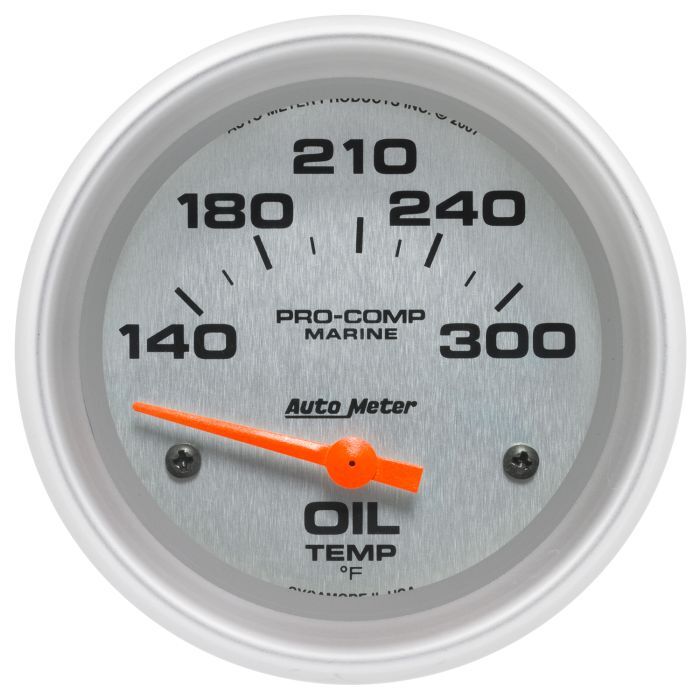

Autometer Gauge, Oil Temp, 2 5/8", 140-300ºf, Electric, Marine Silver, Marine Silver Ultra-Lite (SKU: AMT-200765-33)

An engine running a high oil temperature will fail, as proven time and time again. Monitoring this critical parameter ensures that you are running the correct weight oil and that your oil cooling system is performing properly. Highly accurate and durable thanks to AutoMeter’s patented air core meter movement, a single wire, 1/8” NPT temperature sender (990344) is available separately.

  • Features front sealed bezel design for added water resistance and UV protected paint on dial pointer for added protection against sun damage
  • Requires AutoMeter sending unit 990344
  • 12 and 16 volt compatible, well-suited with nearly every marine electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, corrosion resistant mounting hardware, and detailed instructions for installation
  • 12 month limited warranty
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the boat
  • Traditional incandescent lighting illuminates around the perimeter of the dial

SPECIFICATIONS

Series MARINE SILVER ULTRA-LITE
Product Type Gauge Oil Temp
Dial Color Silver
Lens Style Flat, Clear
Bezel Color Brushed Aluminum
Bezel Style Super Bezel
Size (Metric) 66.7mm
Size (Standard) 2-5/8"
Cup/Hole Size (Metric) 66.7mm
Cup/Hole Size (Standard) 2-5/8"
Outer Bezel Diameter 2-7/8"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air Core
Gauge Type Oil Temperature
Range 140-340 °F
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2226
Instruction Manual Part Number 2650-1341
