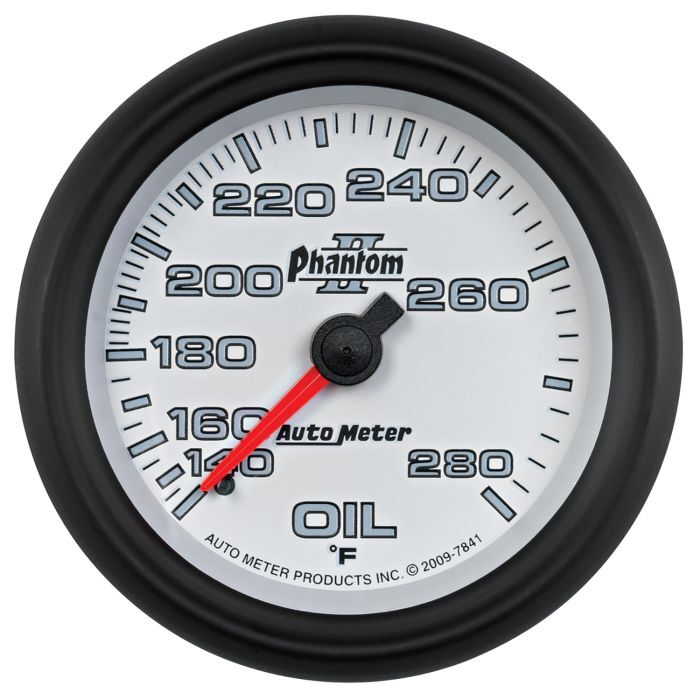

Autometer Gauge, Oil Temp, 2 5/8", 140-280ºf, Mechanical, Phantom Ii, Phantom Ii (SKU: AMT-7841)

One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you’ve got the proper oil weight and cooling capacity. Utilizing AutoMeter’s ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6’ capillary tube and 1/2” NPT mounting nut are included.

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • AutoMeter’s race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/2" NPT adapter, mounting hardware, and detailed instructions for installation

SPECIFICATIONS

Series PHANTOM II
Product Type Gauge Oil Temp
Dial Color White
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 66.7mm
Size (Standard) 2-5/8"
Cup/Hole Size (Metric) 66.7mm
Cup/Hole Size (Standard) 2-5/8"
Outer Bezel Diameter 2-7/8"
Lighting Type LED
Lighting Color White
Pointer Color Fluorescent Red
Movement Mechanical
Gauge Type Oil Temperature
Range 140-280 °F
Includes (Replacement) Adapter/Fitting 1/2"" NPT adapter/fitting.
Includes (Replacement) Tubing 6 ft. Capillary Tube
Includes (Replacement) Mounting Hardware 3245
Instruction Manual Part Number 2650-1606
