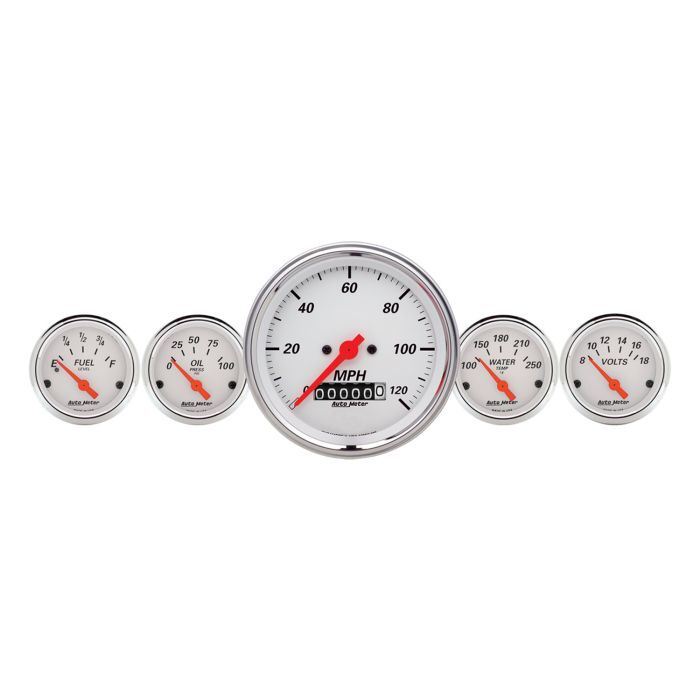

Autometer Gauge Kit, 5 Pc., 3 3/8" & 2 1/16", Elec. Speedometer, Arctic White, Arctic White (SKU: AMT-1340)
AutoMeter has brought together the most popular gauges into a simple kit. The kit includes a speedometer, water temperature, oil pressure, fuel level, and voltmeter. All senders included where applicable.
- Highly polished chrome bezel
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD), sending unit adapters (1/4", 3/8, and 1/2" NPT adapters), bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- AutoMeters race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.
- Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Traditional rolling drum odometer which can register up to 100,000 miles.
SPECIFICATIONS |
|
| Series | ARCTIC WHITE |
| Product Type | Gauge Kit |
| Dial Color | White |
| Lens Style | Domed, Clear |
| Bezel Color | Chrome |
| Bezel Style | Street Rod |
| Lighting Type | Incandescent |
| Lighting Color | White Incandescent |
| Pointer Color | Fluorescent Red |
| Movement | Electric, Air-Core |
| Gauge Type | 5 Piece Kit |
| Range | 120 MPH/100 PSI/100-250 °F/8-18V/240?E-33?F |
| Includes (Replacement) Sensor Unit | Fuel Sender 3262 - Oil Sender 2242 - Water Sender 2258 - VSS Sensor |
| Includes (Replacement) Adapter/Fitting | 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing, 3/8" NPT and 1/2" NPT adapter fittings. |
| Includes (Replacement) Bulb & Socket | 3219 & 3220 |
| Includes (Replacement) Light Covers | Red 3214 & Green 3215 |
| Includes (Replacement) Mounting Hardware | Brackets Included |
| Instruction Manual Part Number | 2650-1164 |
