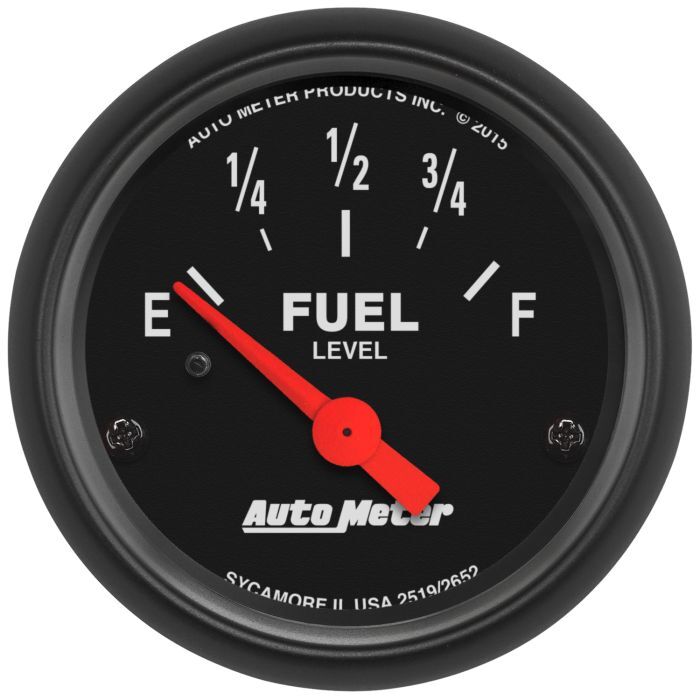

Autometer Gauge, Fuel Level, 2 1/16", 73?e To 10?f(Aftermarket Linear), Elec, Z-Series, Z-SeriesBBC Standard Valve Covers, Polished Aluminum, Includes rubber grommets & baffles (SKU: AMT-2652)

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Includes bulb and socket assembly with red and green bulb covers
  • Designed specifically for use with aftermarket/reproduction 73-10ohm fuel level sensors for Ford and Chrysler applications that have a linear scale.
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

SPECIFICATIONS

Series Z-SERIES
Product Type Gauge Fuel Level
Dial Color Black
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-5/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Fuel Level
Range 73 ? Empty / 10 ? Full (LINEAR)
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1079
