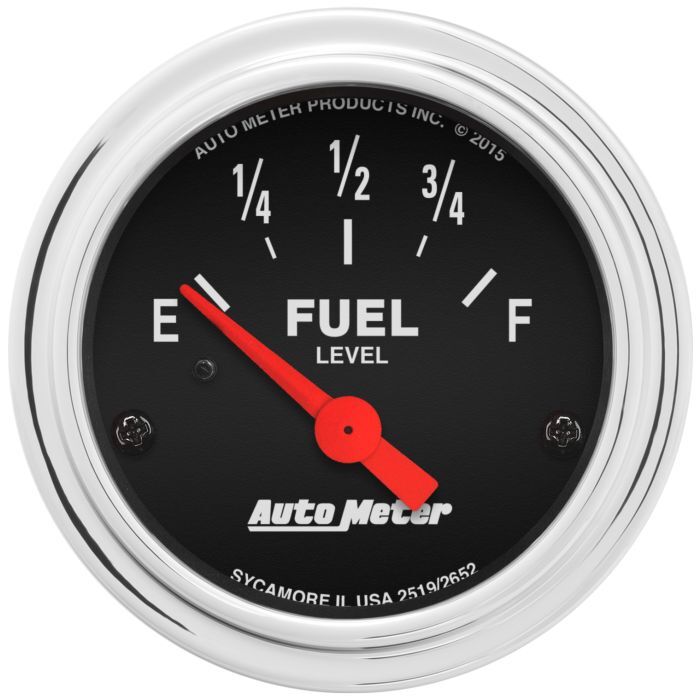

Autometer Gauge, Fuel Level, 2 1/16", 73?e To 10?f(Aftermarket Linear), Elec, Trad Chrome, TraditionI.D. Spring Seat 1.440 OD x .740 OD x .570 ID (Fits 8020 Spring), Set of 16 (SKU: AMT-2519)

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Highly polished chrome bezel
  • Includes bulb and socket assembly with red and green bulb covers
  • Designed specifically for use with aftermarket/reproduction 73-10ohm fuel level sensors for Ford and Chrysler applications that have a linear scale.
  • Features Air-Core meter movement
  • Includes gauge mounting hardware and installation instructions

SPECIFICATIONS

Series TRADITIONAL CHROME
Product Type Gauge Fuel Level
Dial Color Black
Lens Style Flat, Clear
Bezel Color Chrome
Bezel Style SAE
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-5/16"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Fuel Level
Range 73 ? Empty / 10 ? Full (LINEAR)
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1858
