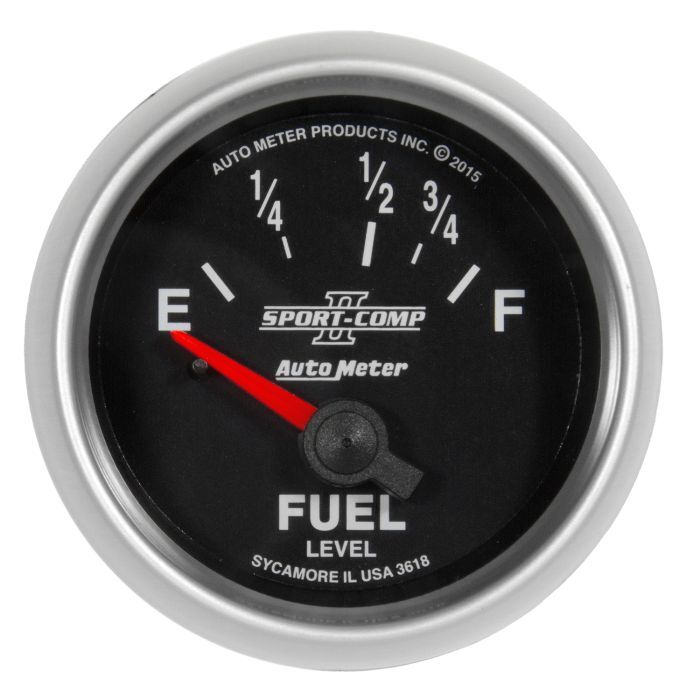

Autometer Gauge, Fuel Level, 2 1/16", 16?e To 158?f, Elec, Sport-Comp Ii, Sport-Comp Ii (SKU: AMT-3618)

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Works with 16E/158F ohm senders, including AutoMeter 3262
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes mounting hardware and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

SPECIFICATIONS

Series SPORT-COMP II
Product Type Gauge Fuel Level
Dial Color Black
Lens Style Flat, Clear
Bezel Color Brushed Aluminum
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED
Lighting Color White
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Fuel Level
Range 16 ? Empty / 158 ? Full
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1858
