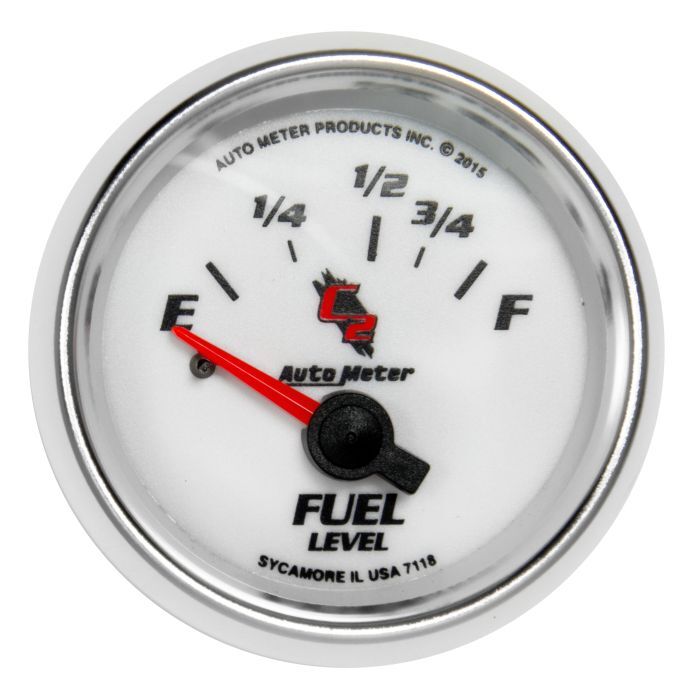

Autometer Gauge, Fuel Level, 2 1/16", 16?e To 158?f, Elec, C2, C2 (SKU: AMT-7118)

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
  • Works with 16E/158F ohm senders, including AutoMeter 3262
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes mounting hardware and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

SPECIFICATIONS

Series C2
Product Type Gauge Fuel Level
Dial Color White
Lens Style Flat, Clear
Bezel Color Bright Anodized
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED
Lighting Color Blue
Pointer Color Fluorescent Red
Movement Electric, Air-Core
Gauge Type Fuel Level
Range 16 ? Empty / 158 ? Full
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1858
