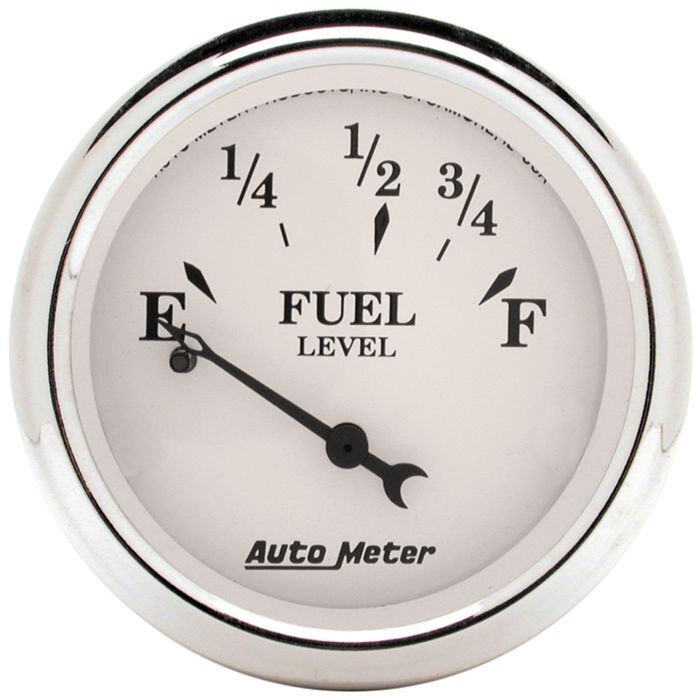

Autometer Gauge, Fuel Level, 2 1/16", 0?e To 30?f, Elec, Old Tyme White, Old-Tyme White (SKU: AMT-1607)

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1965 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

SPECIFICATIONS

Series OLD-TYME WHITE
Product Type Gauge Fuel Level
Dial Color White
Lens Style Domed, Clear
Bezel Color Chrome
Bezel Style Street Rod
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-15/64"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color Black
Movement Electric, Air-Core
Gauge Type Fuel Level
Range 0 ? Empty / 30 ? Full
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1858
