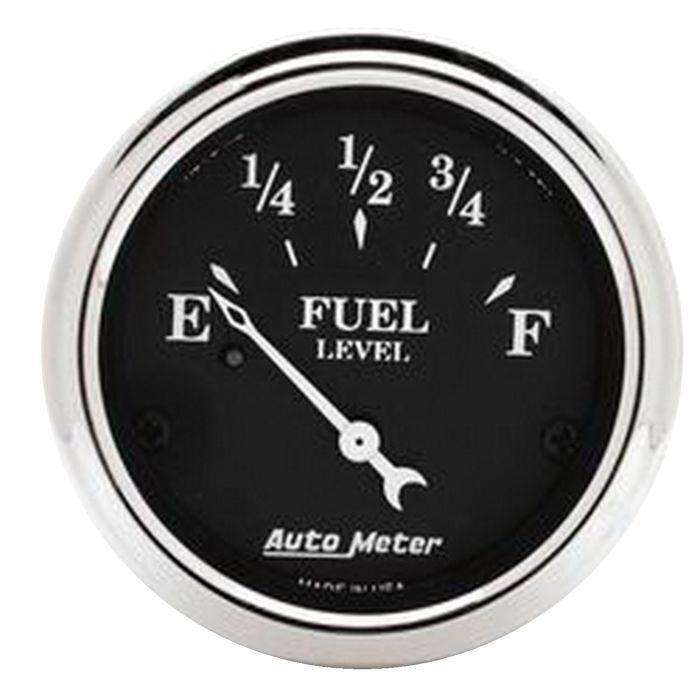

Autometer Gauge, Fuel Level, 2 1/16", 0?e To 30?f, Elec, Old Tyme Black, Old Tyme Black (SKU: AMT-1718)

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Highly polished chrome bezel
  • Traditional incandescent lighting illuminates around the perimeter of the dial
  • Works with most Pre-1965 Chevrolet/GM senders
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
  • AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

SPECIFICATIONS

Series OLD TYME BLACK
Product Type Gauge Fuel Level
Dial Color Black
Lens Style Domed, Clear
Bezel Color Chrome
Bezel Style Street Rod
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-15/64"
Lighting Type Incandescent
Lighting Color White Incandescent
Pointer Color White
Movement Electric, Air-Core
Gauge Type Fuel Level
Range 0 ? Empty / 30 ? Full
Includes (Replacement) Bulb & Socket 3220
Includes (Replacement) Light Covers Red 3214 & Green 3215
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1858
