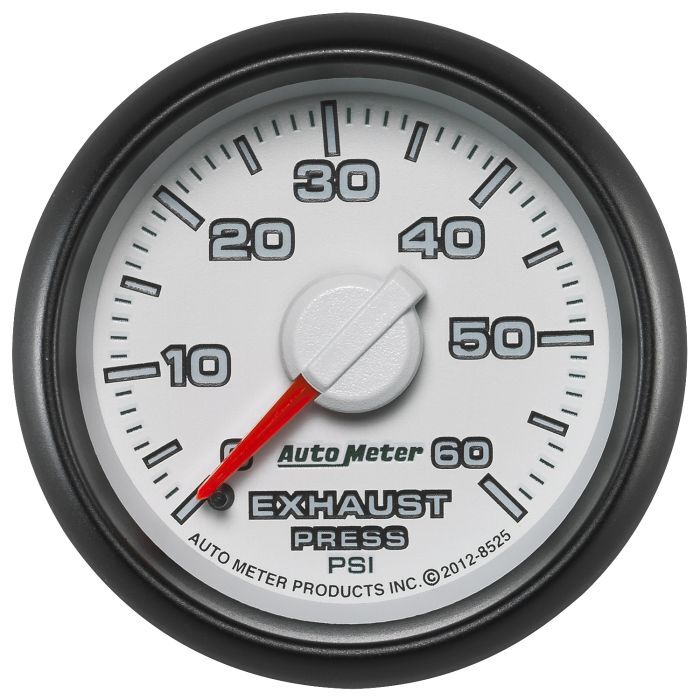

Autometer Gauge, Exhaust Press., 2 1/16", 60Psi, Mechanical, Ram Gen 3 Factory Match, Gen 3 Dodge Fa (SKU: AMT-8525)

One of the most requested line additions in AutoMeter history, this Mechanical Exhaust Pressure Gauge has been engineered to the highest standards of accuracy and durability. Precisely monitor your exhaust backpressure to maximize power and efficiency and ensure turbo longevity. Also ideal for cam tuning, a simple 1/8” NPT connection is all you need for installation. An install kit with 1/4” copper tubing is included and an optional particulate filter is also available for enhanced gauge lifespan. For operator safety, these gauges are not recommended for installation inside the cabin of a vehicle.

  • Features Hi-Def™ through-the-dial green LED lighting
  • Includes 10 ft. Nylon tubing with 1/8" NPT compression fittings
  • Includes 6ft. Copper tubing with 1/8" NPT compression fittings
  • Includes 1/8" NPT to 1/4" NPT adapter/fitting
  • Direct vehicle exhaust connection to instrument - Gauge must be mounted outside of vehicle!
  • Includes gauge mounting hardware and installation instructions

SPECIFICATIONS

Series GEN 3 DODGE FACTORY MATCH
Product Type Gauge Exhaust Press
Dial Color White
Lens Style Flat, Clear
Bezel Color Black
Bezel Style Super Bezel
Size (Metric) 52.4mm
Size (Standard) 2-1/16"
Cup/Hole Size (Metric) 52.4mm
Cup/Hole Size (Standard) 2-1/16"
Outer Bezel Diameter 2-1/4"
Lighting Type LED
Lighting Color Green
Pointer Color Fluorescent Red
Movement Mechanical
Gauge Type Exhaust Pressure
Range 0-60 PSI
Includes (Replacement) Adapter/Fitting 1/8" NPT Male to 1/8" compression fitting, 1/8" NPT Female to 1/8" compression fitting, 1/8" NPT to 1/4" NPT bushing
Includes (Replacement) Tubing 10 ft. nylon tubing - 6 ft. Copper Tube
Includes (Replacement) Mounting Hardware 2230
Instruction Manual Part Number 2650-1700
